APPLIERS.-
The APPLICATORS are an integral part of a magnetotherapy equipment without which it would be impossible to apply magnetotherapy. . Their quality is as important as the device (the device) where they are connected.
The high quality of the applicators is one of the prerequisites for the effectiveness of every application of Biomag pulsed magnetic therapy. The widest assortment on the market and the quality of applicators are one of the reasons for the high satisfaction of our customers. We have solenoids in different diameters, flat and local applicators.
Technical data.-
The basis of the BIOMAG applicators are air coils covered with an enameled copper wire or other conductor in a special structure. The surface is covered with top quality synthetic leather. All applicators are designed with clips and labels with the manufacturer's logo. The applicators have 1, 2 or 3 connectors that are used to connect them to the Biomag device.
SOLENOID applicators.-
Biomag solenoid magnetic therapy applicators have a homogeneous magnetic field. They are used in those cases where emphasis is placed on a uniform magnetic field performance and when deep tissue penetration is required (for example in joints). The therapeutic effect can be increased by using 3D-marked solenoids (solenoids with Biomag® patented technology). The intensity distribution of the pulsating magnetic field of all applicators can be verified using the Biomag® magnet tester. included in all kits

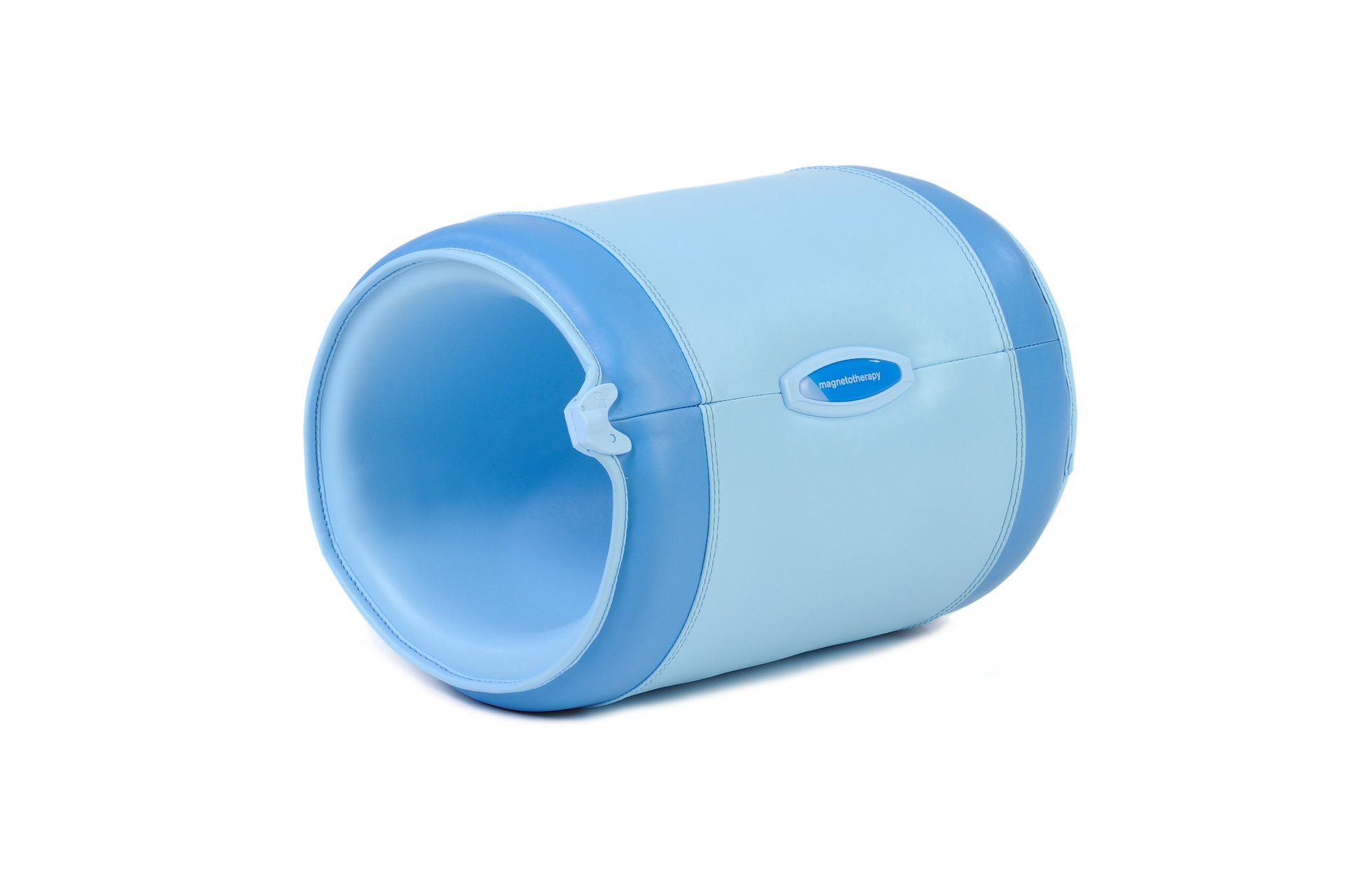

SL 19
flexible applicator
Conector 1xjack
Dimensions: diameter 190 mm, depth 310 mm, weight 1.25 kg

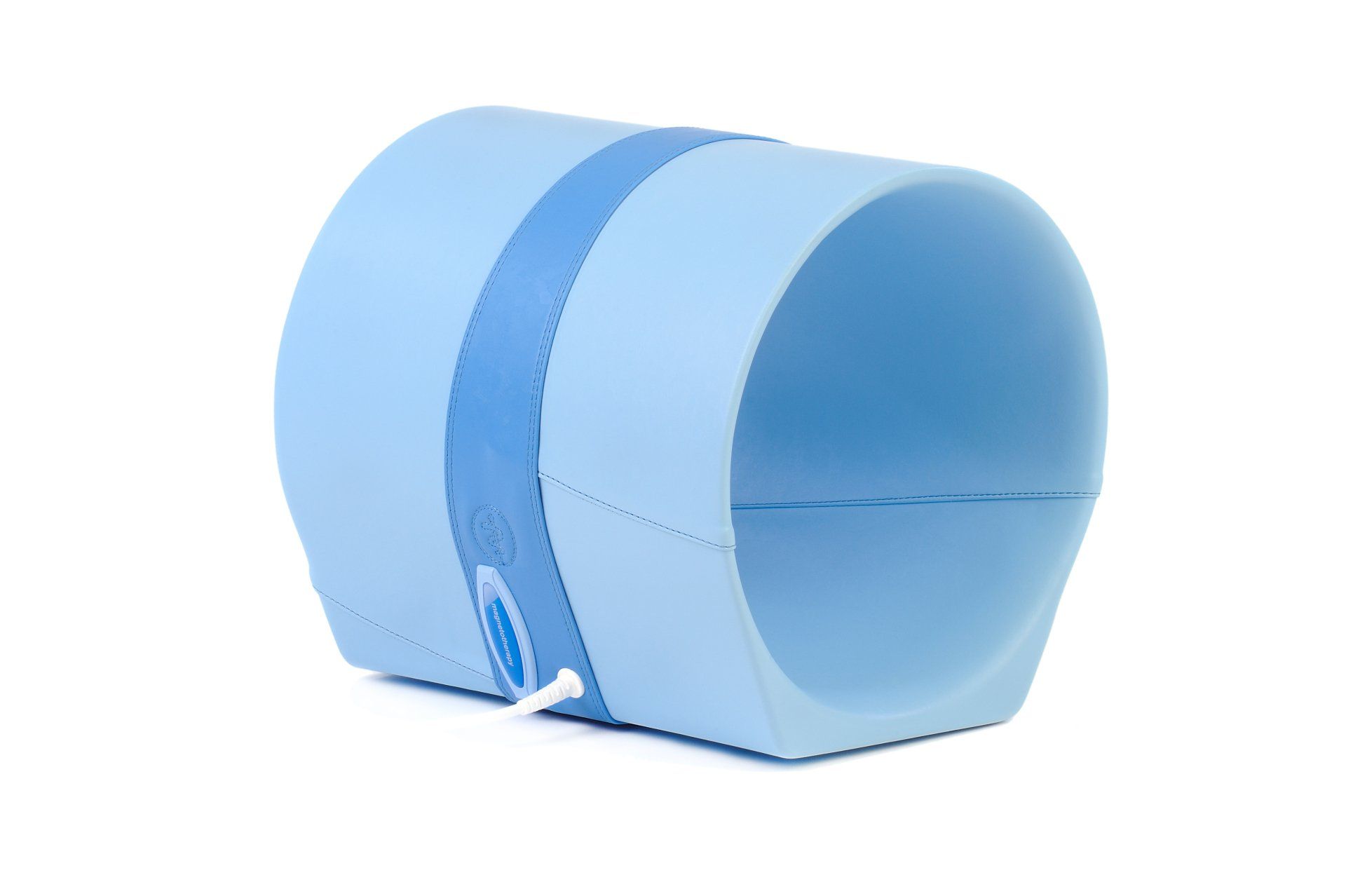

SL30-3D (Sigma 9)
Solenoid with 3D field
Conector 3xjack
Dimensions: diameter 300 mm, depth 170 mm, weight 2.55 kg

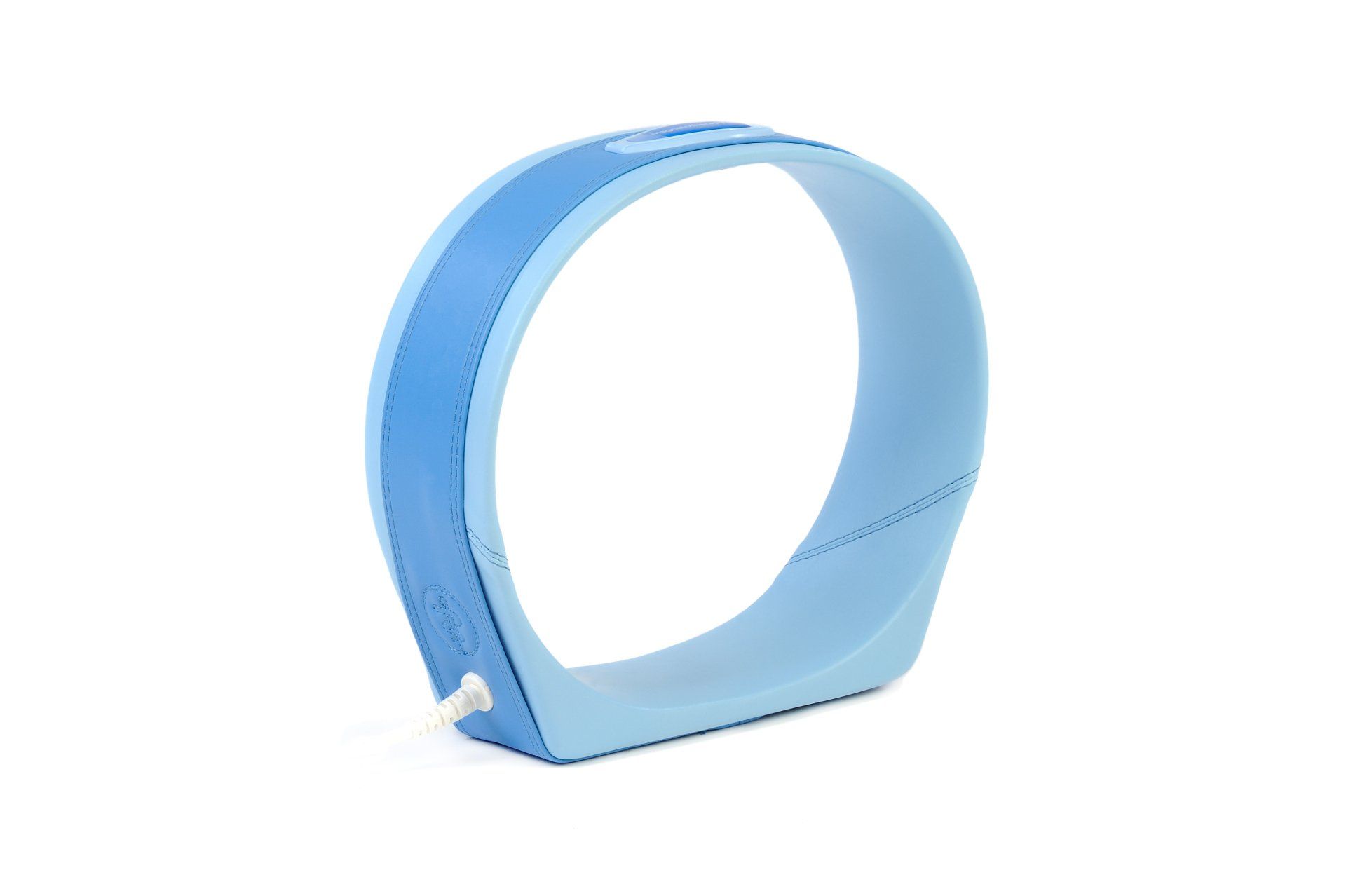

SL29 (Sigma 2)
oval solenoid
Conector 1xjack
Dimensions: diameter 290 mm, depth 90 mm, weight 1.3 kg

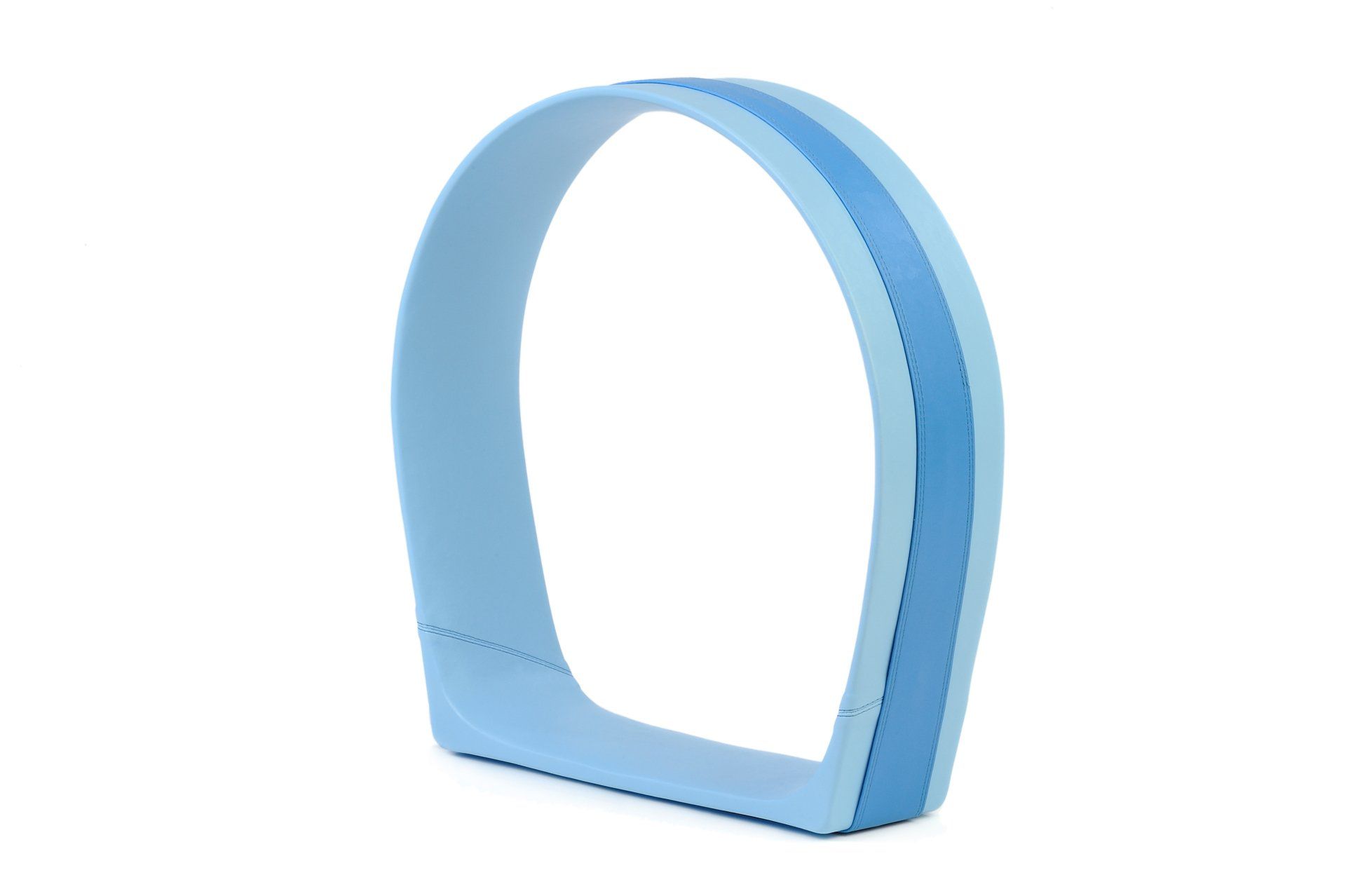

SL45-P (Sigma 4)
flat base solenoid
Conector 1xjack
Dimensions: diameter 450 mm, depth 120 mm, weight 2.95 kg

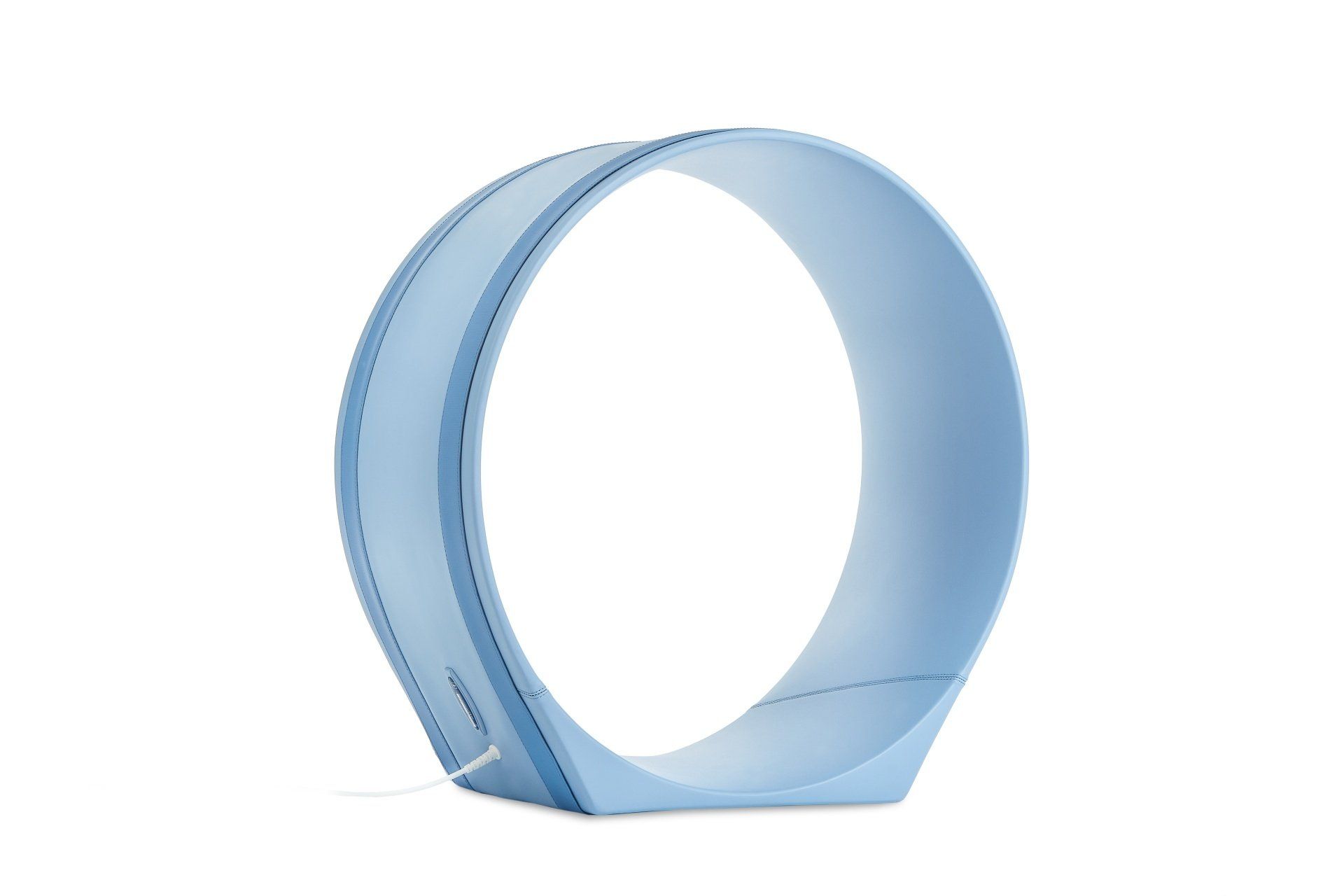

SL70 (Sigma 7)
Sliding Stretcher Solenoid
Conector 1xjack
Dimensions: diameter 700 mm, depth 300 mm, weight 13.35 kg
SL20-3D (Sigma 8)
Solenoid with 3D field
Conector 3xjack
Dimensions: diameter 200 mm, depth 140 mm, weight 2 kg

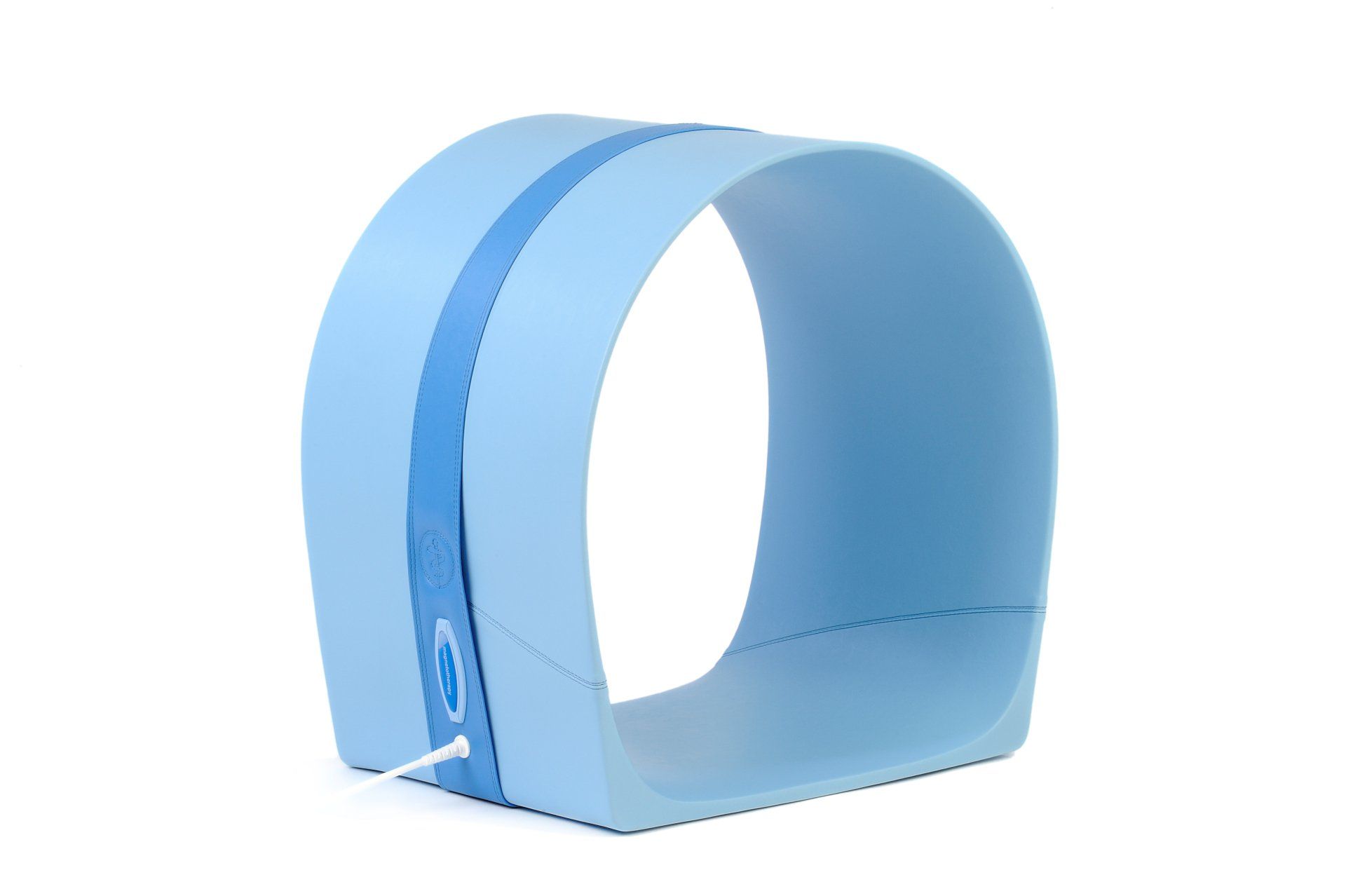

SL50-P (Sigma 5)
flat base solenoid
Conector 1xjack
Dimensions: diameter 500 mm, depth 340 mm, weight 8.75 kg

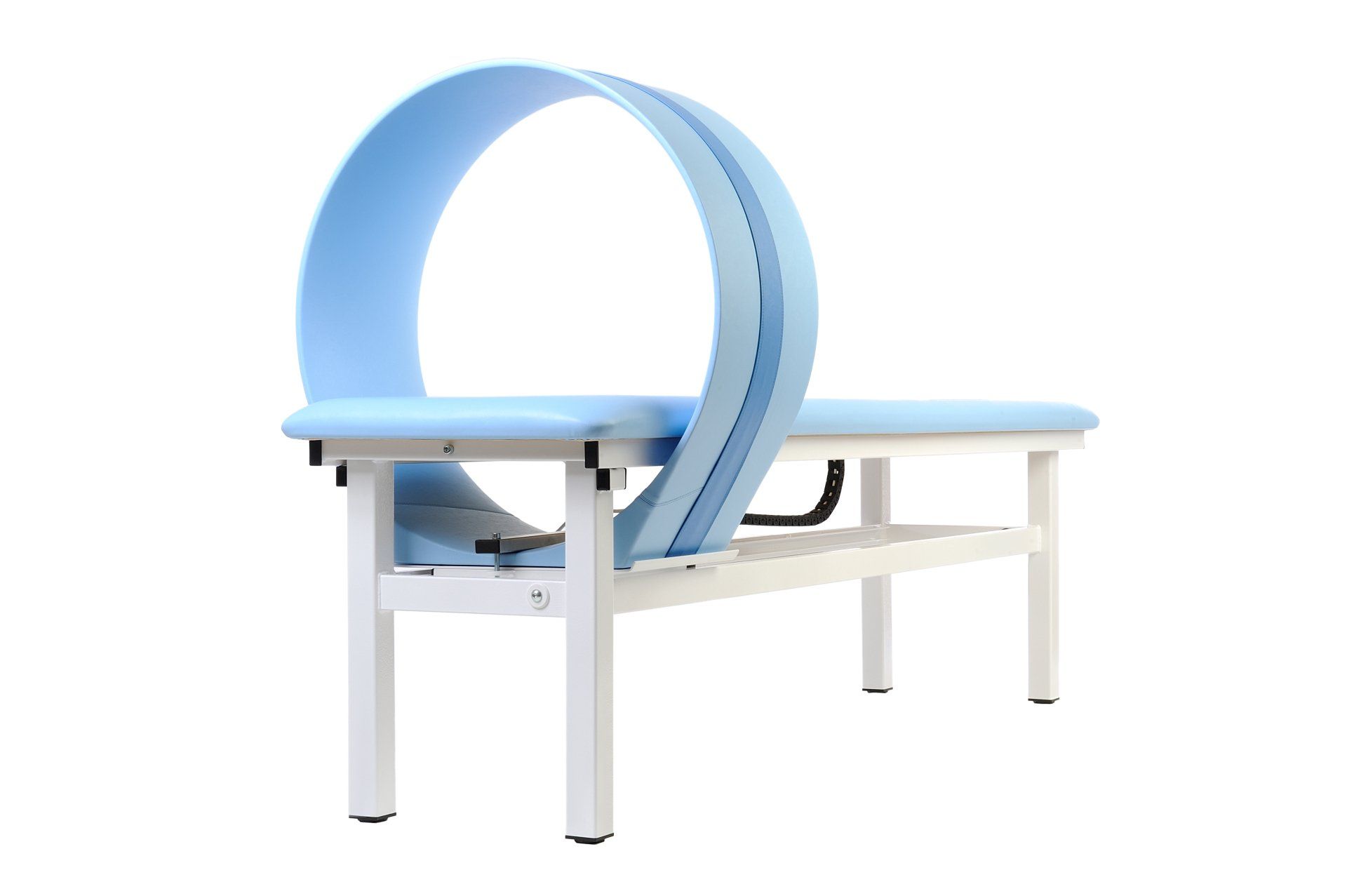

Therapeutic stretcher
Sliding Stretcher Solenoid
Dimensions: diameter 700 mm, depth 300 mm, weight 13.35 kg

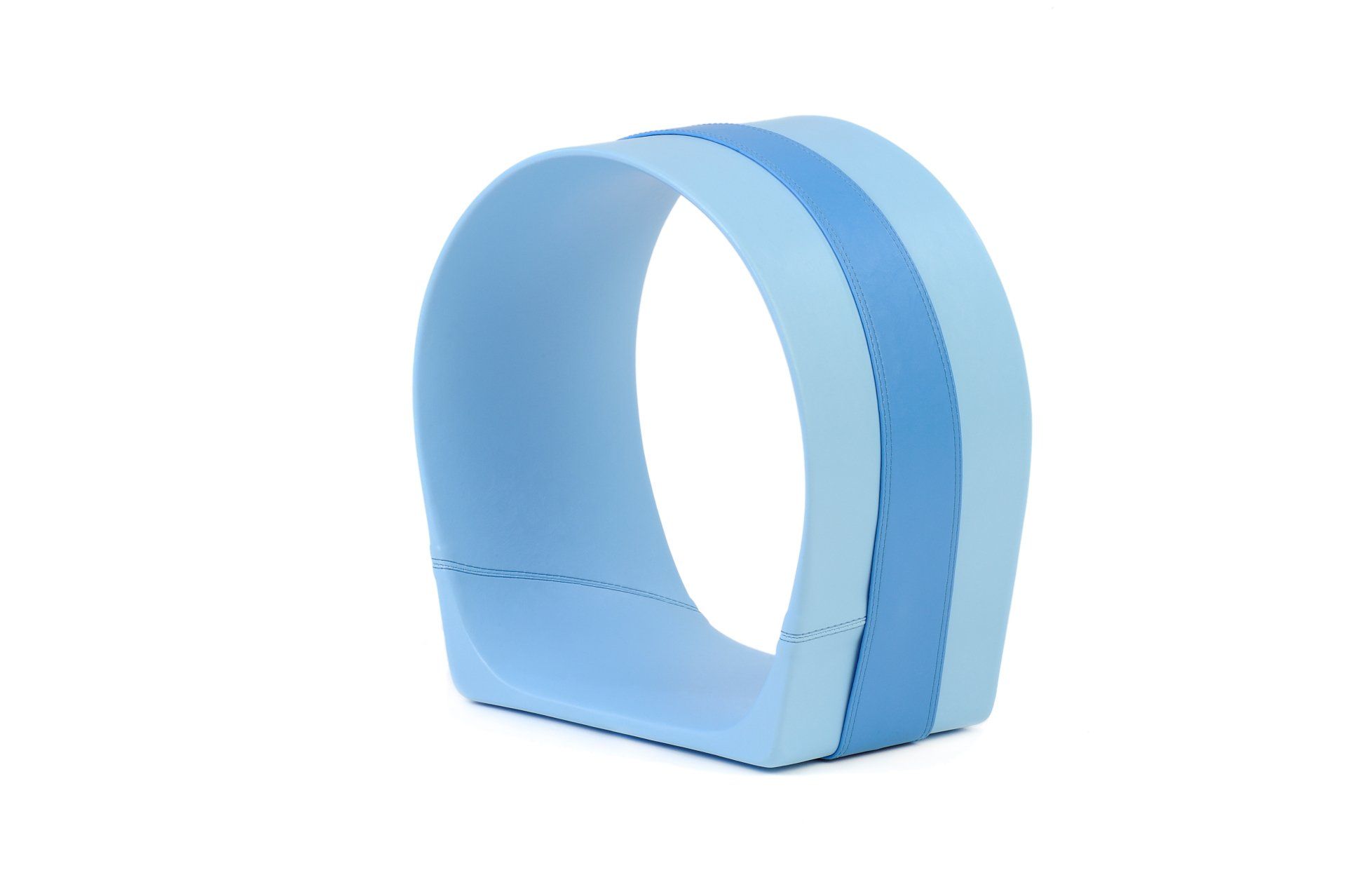

SL30-P (Sigma 3)
flat base solenoid
Conector 1xjack
Dimensions: diameter 300 mm, depth 170 mm, weight 2.55 kg

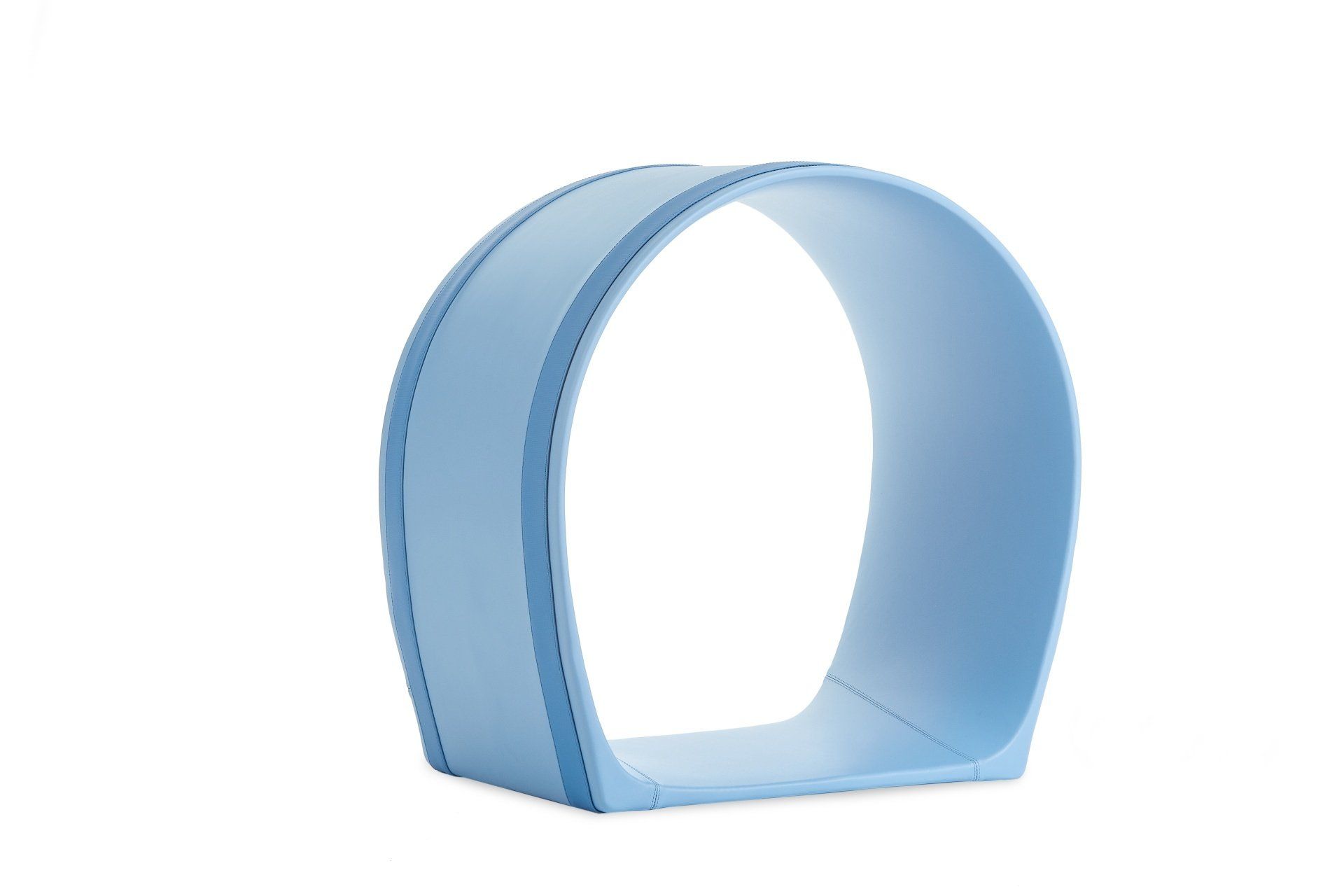

SL60-P (Sigma 6)
flat base solenoid
Conector 1xjack
Dimensions: diameter 600 mm, depth 340 mm, weight 12.2 kg
FLAT applicators

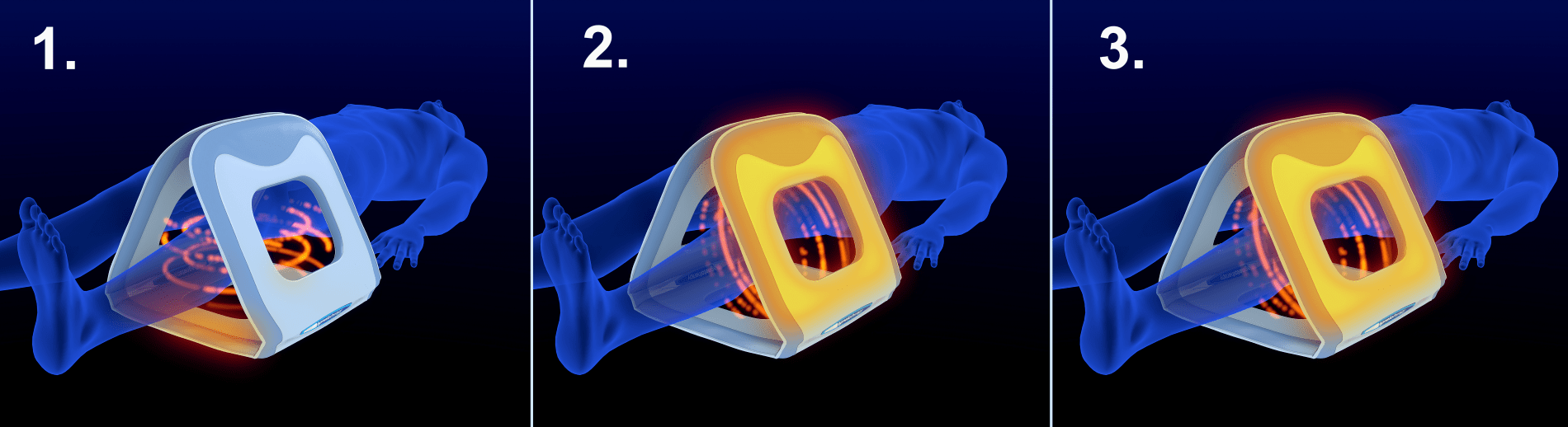

Flat applicators are divided into single-part and multi-part models. Multi-part applicators can be activated at the same time or alternately or sequentially. In multi-part applicators activated at the same time, the polarity of the adjacent parts is always opposite so that the magnetic field strength does not decrease when the applicator is bent. In alternately (marked 2C) or sequentially (marked 3D) activated applicators, there are no mutual influences, so the polarity of all parts on each side of the applicator is the same. In the programs marked with 3D, the impulses are sent from the device to the applicator at regular intervals over and over again and, by bending or bringing the different parts of the applicator closer together (in the form of a triangle), the so-called rotary effect is produced, which considerably intensifies the effect of the magnetic field on the organism. This solution of the applicator and the transmission of the impulses is patented and protected by the company Biomag®.

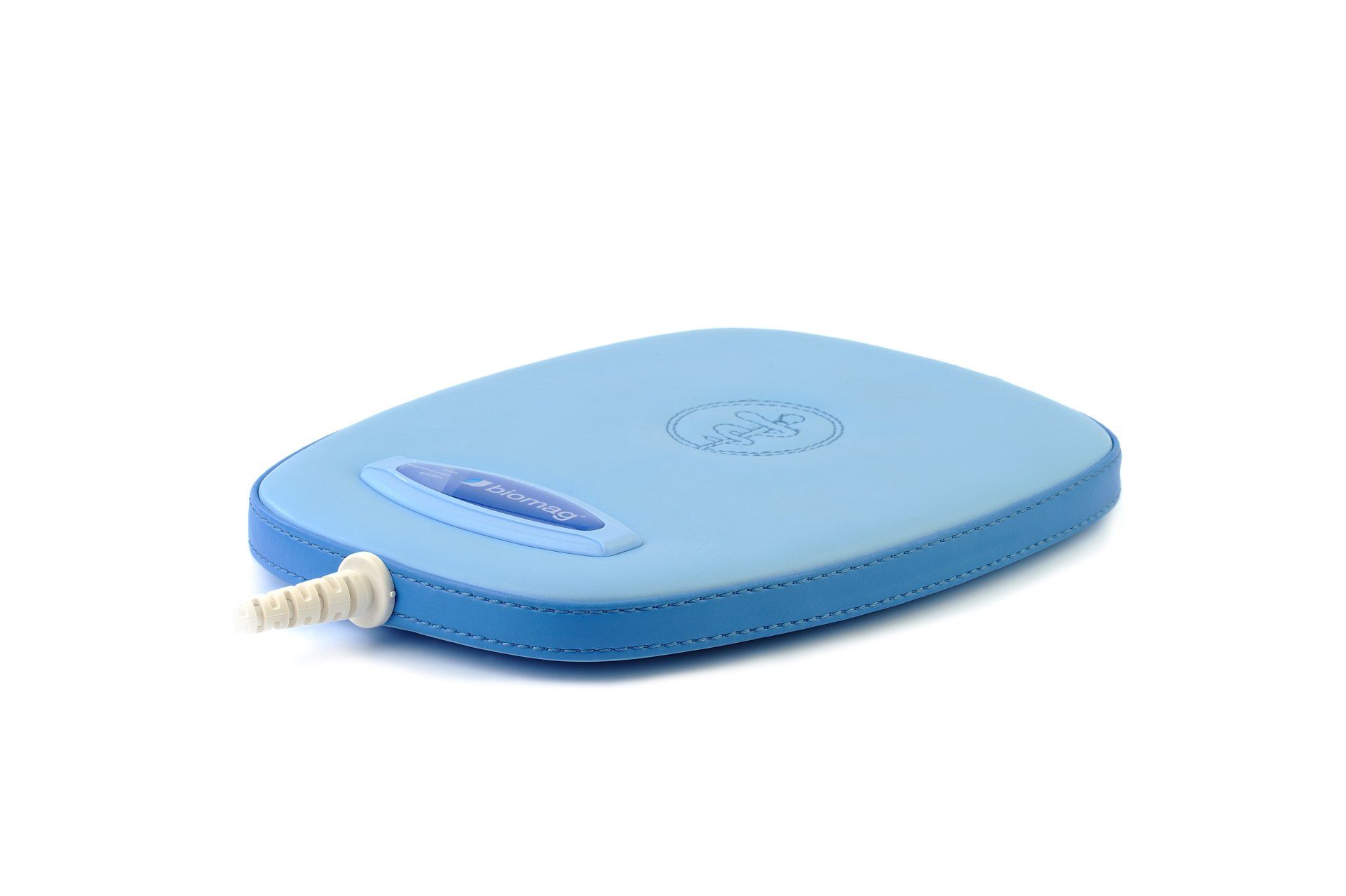

AL21 (Beta)
Intensive local applicator
Conector 1xjack
Dimensions: width 160 mm, length 210 mm, height 26 mm, weight 1.1 kg

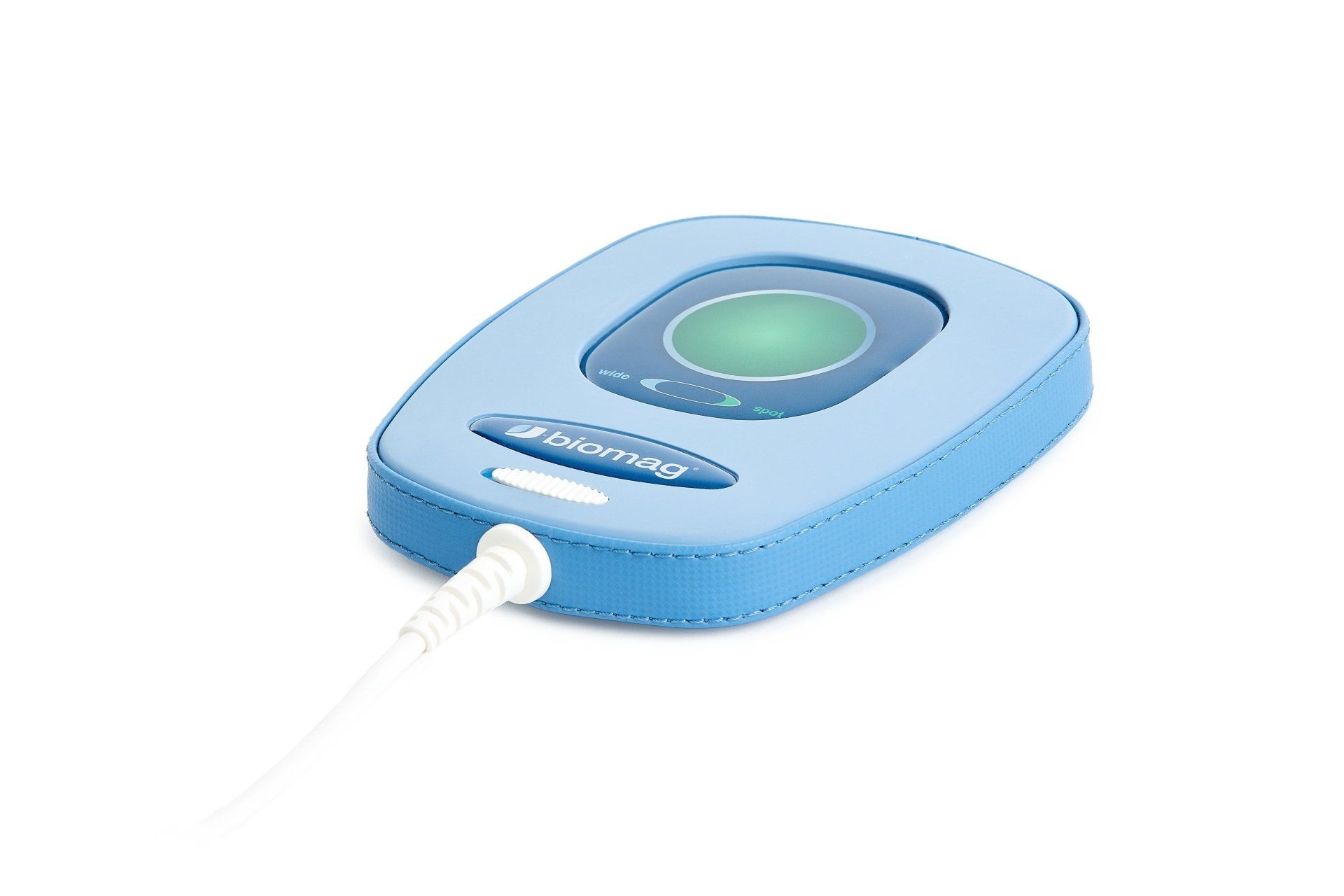

A6P2
Alternate Connection Local Applicator
Conector 1xjack
Dimensions: width 130mm, length 170mm, height 23mm, weight 0.58kg

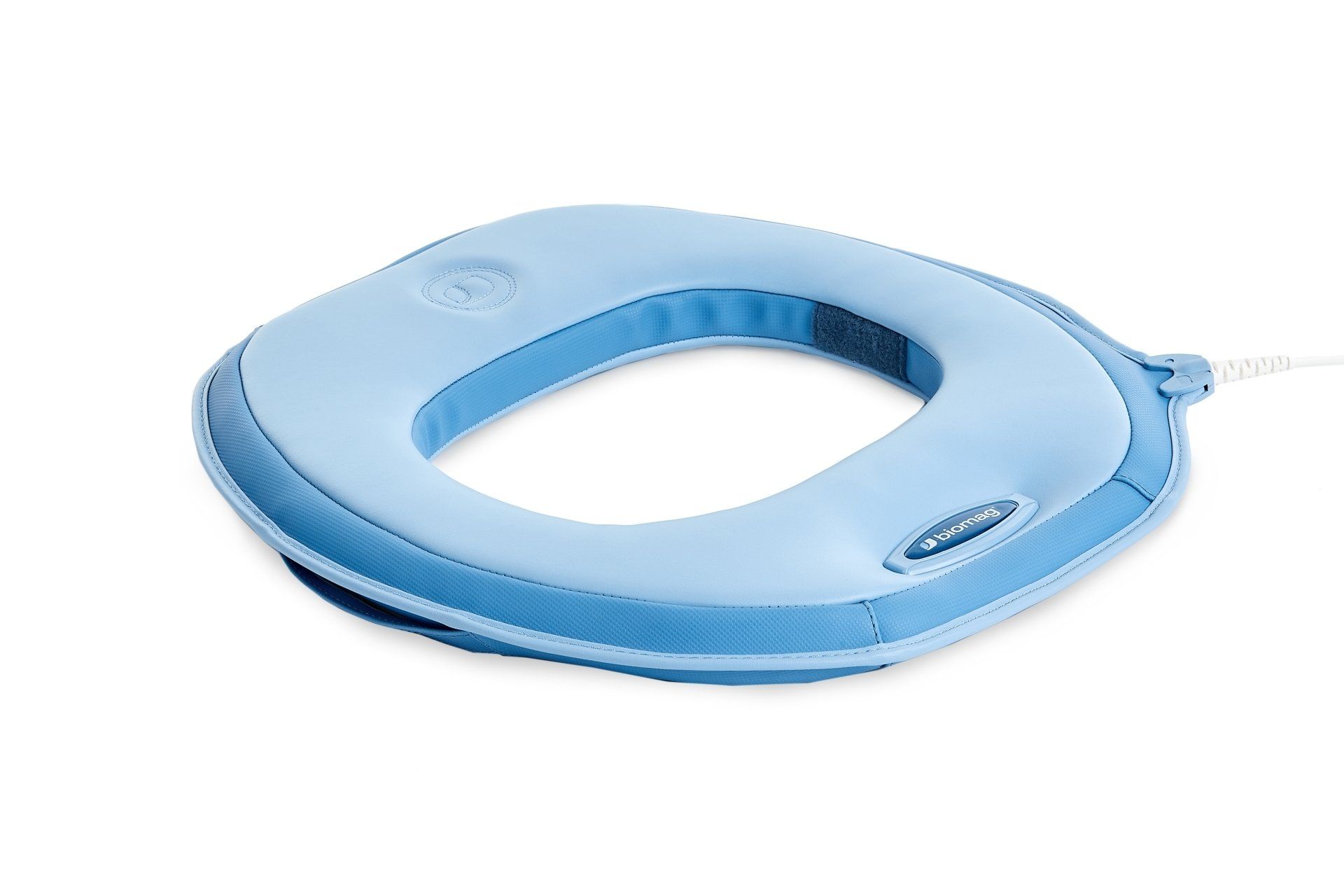

A8P
One-piece combined applicator with hole and fixing option
Conector 1xjack
Dimensions: width 390 mm, length 440 mm, height 40 mm, weight 0.72 kg
A8P(without pad)
One-piece combined applicator with hole and fixing option.
Conector 1xjack
Dimensions: width 390 mm, length 440 mm, height 40 mm, weight 0.72 kg

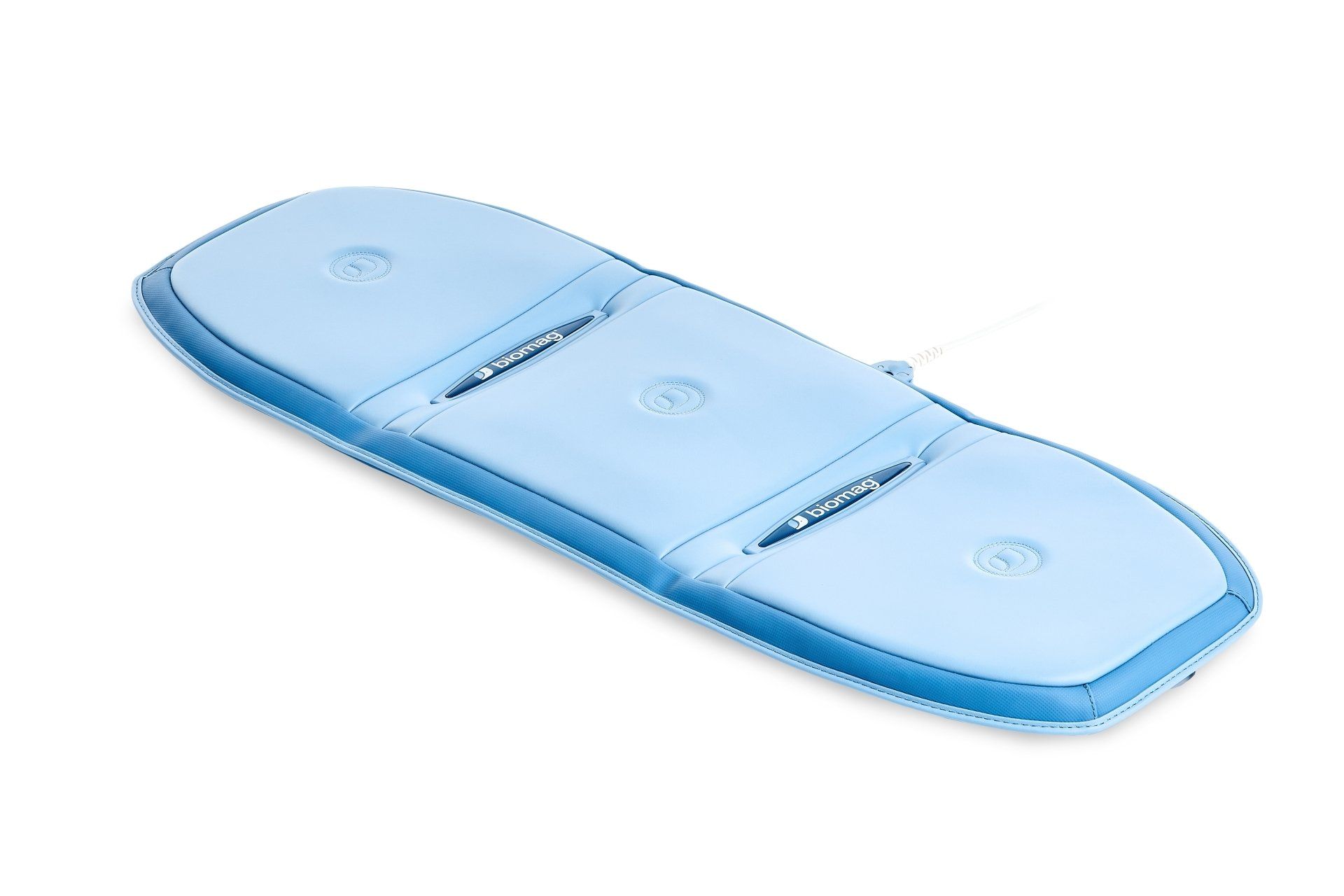

A10P
3-piece combo applicator
Conector 1xjack
Dimensions: width 32mm, length 90mm, height 4mm, weight 2kg

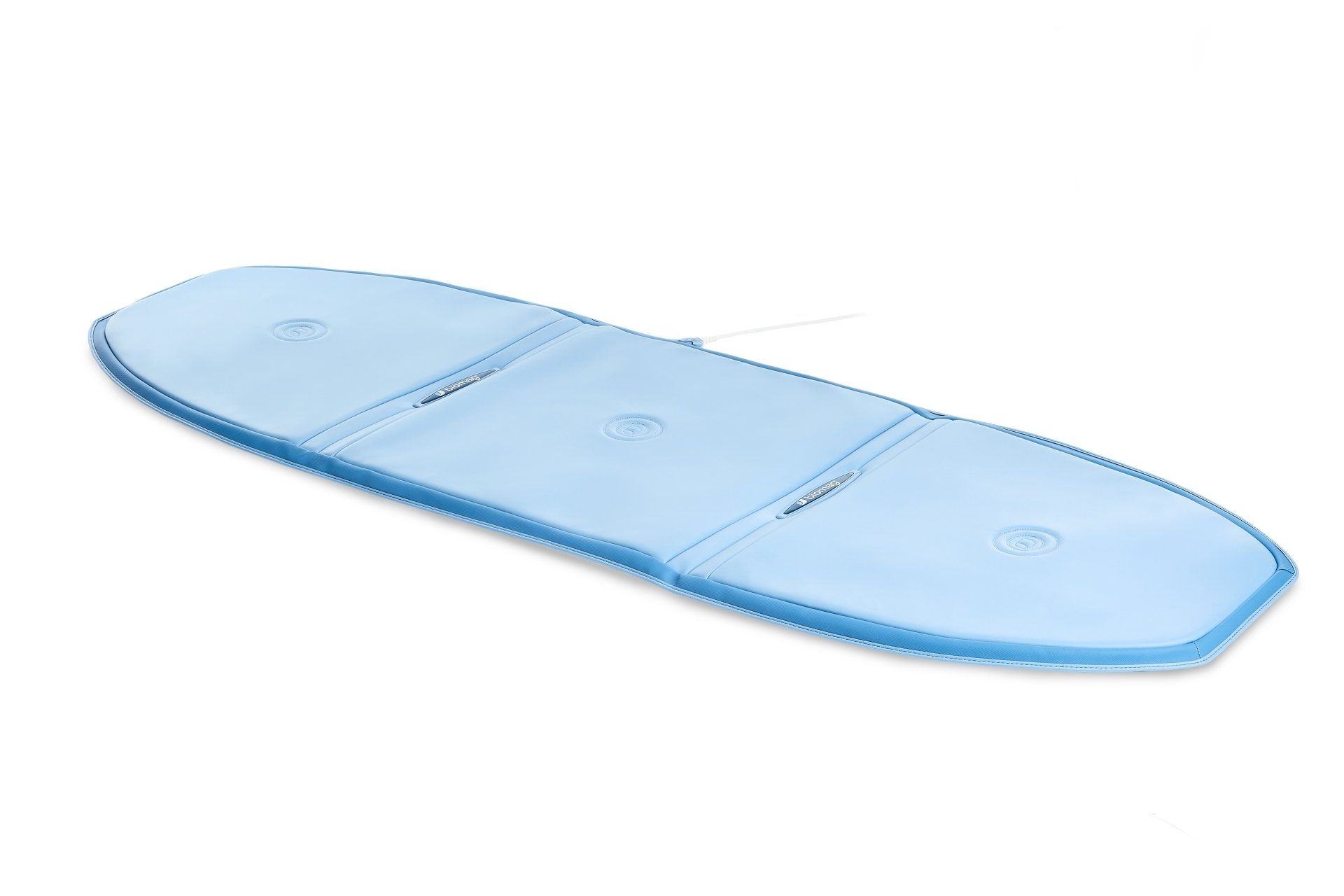

A12PL
3-piece applicator with 3D pulses for use all over the body
Conector 3xjack
Dimensions: width 600mm, length 1,780mm, height 40mm, weight 3.68kg

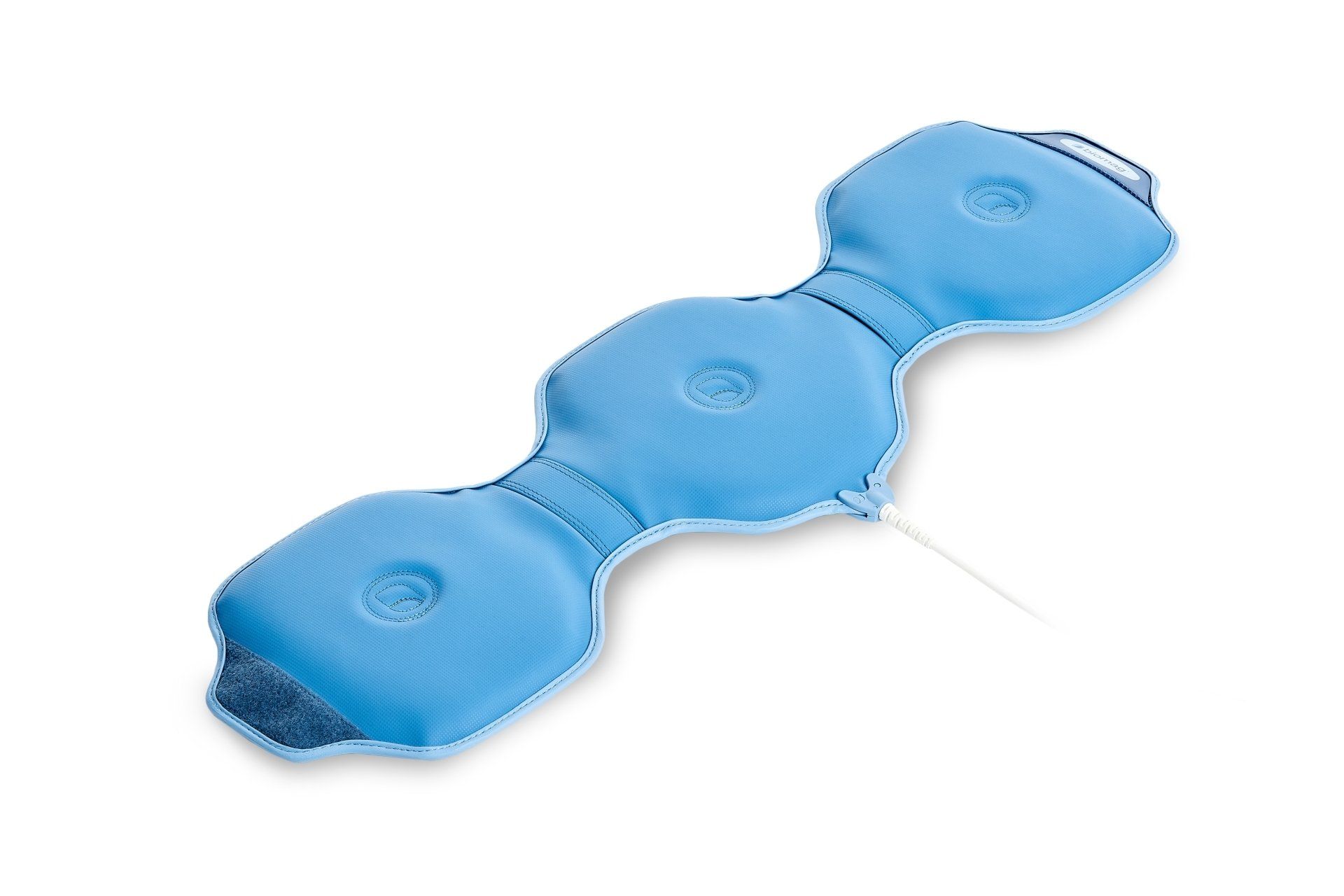

A17P
3-piece applicator with 3D-e impulses with the possibility of fixation.
Conector 3xjack
Dimensiones: ancho 230mm, largo 770mm, alto 4mm
AL51
One-piece applicator with fixation possibility
Conector 1xjack
Dimensions: width 450mm, length 510mm, height 28mm
Peso. 0,95mm

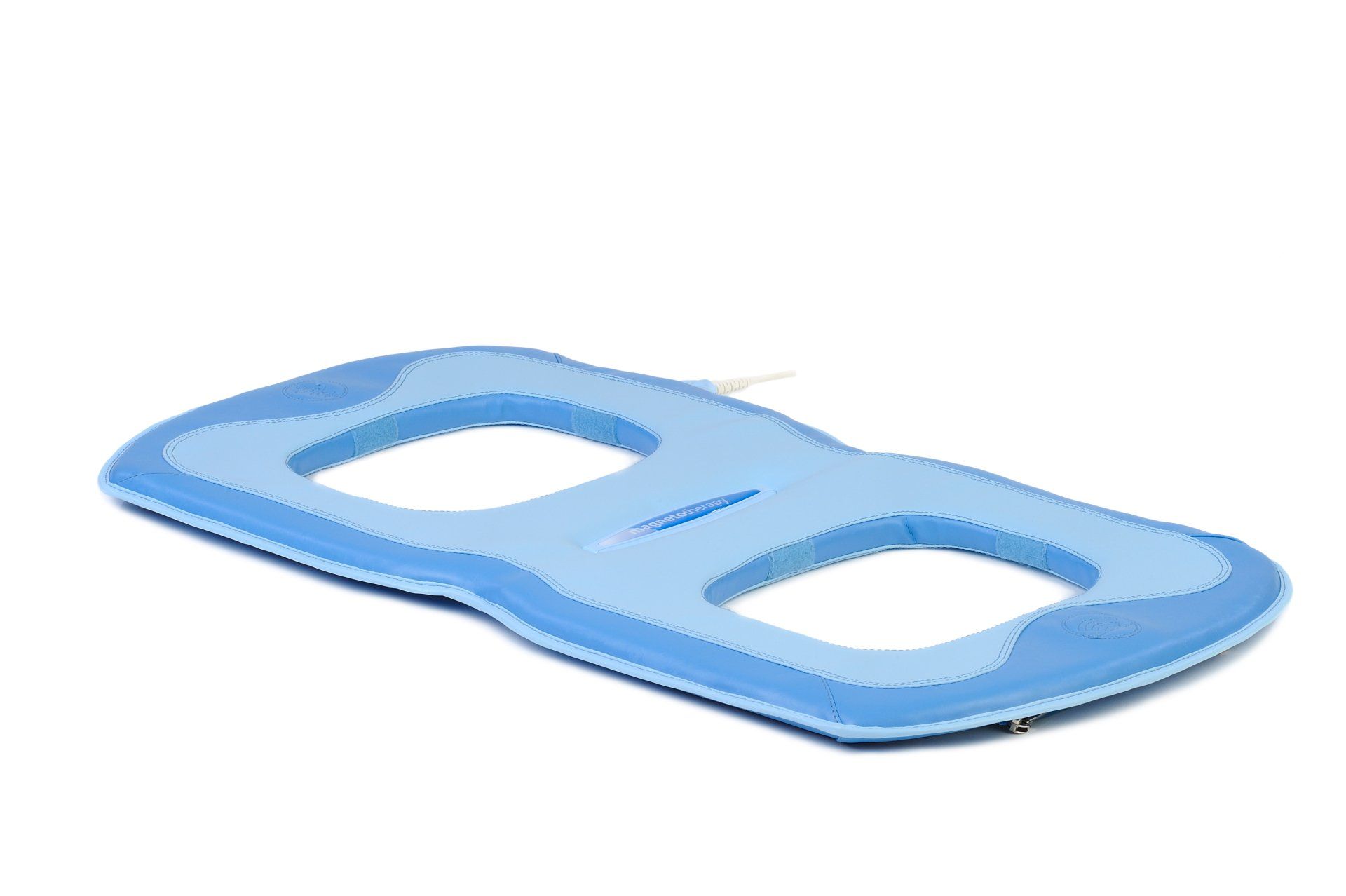

AL79-2C-COMBI
2-piece applicator with holes with the possibility of fixing with alternate connection of the parts
Conector: 2xjack
Dimensions: width 430 mm, length 790 mm, height 28 mm, weight 1.4 kg

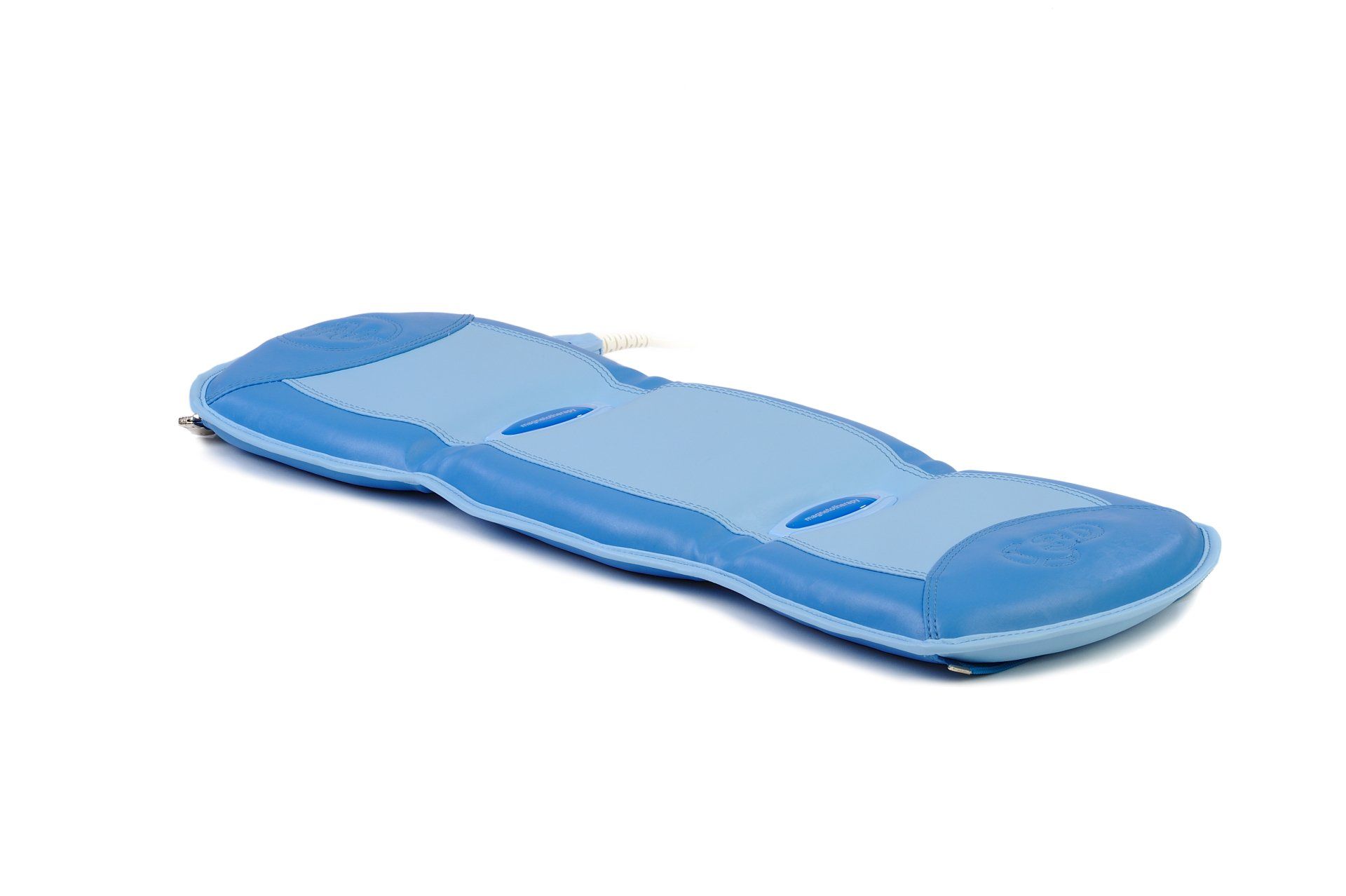

AL115-3D-COMBI
Three-piece combined applicator with holes and 3D impulses with the possibility of closed connection or fixation
Dimensions: width 430 mm, length 1150 mm, height 28 mm, weight 2.1 kg
A11P
3-piece combination applicator with 3D pulses and the possibility of closing
Conector 3xjack
Dimensions: width 420mm, length 1,170mm, height 40mm, weight 2kg

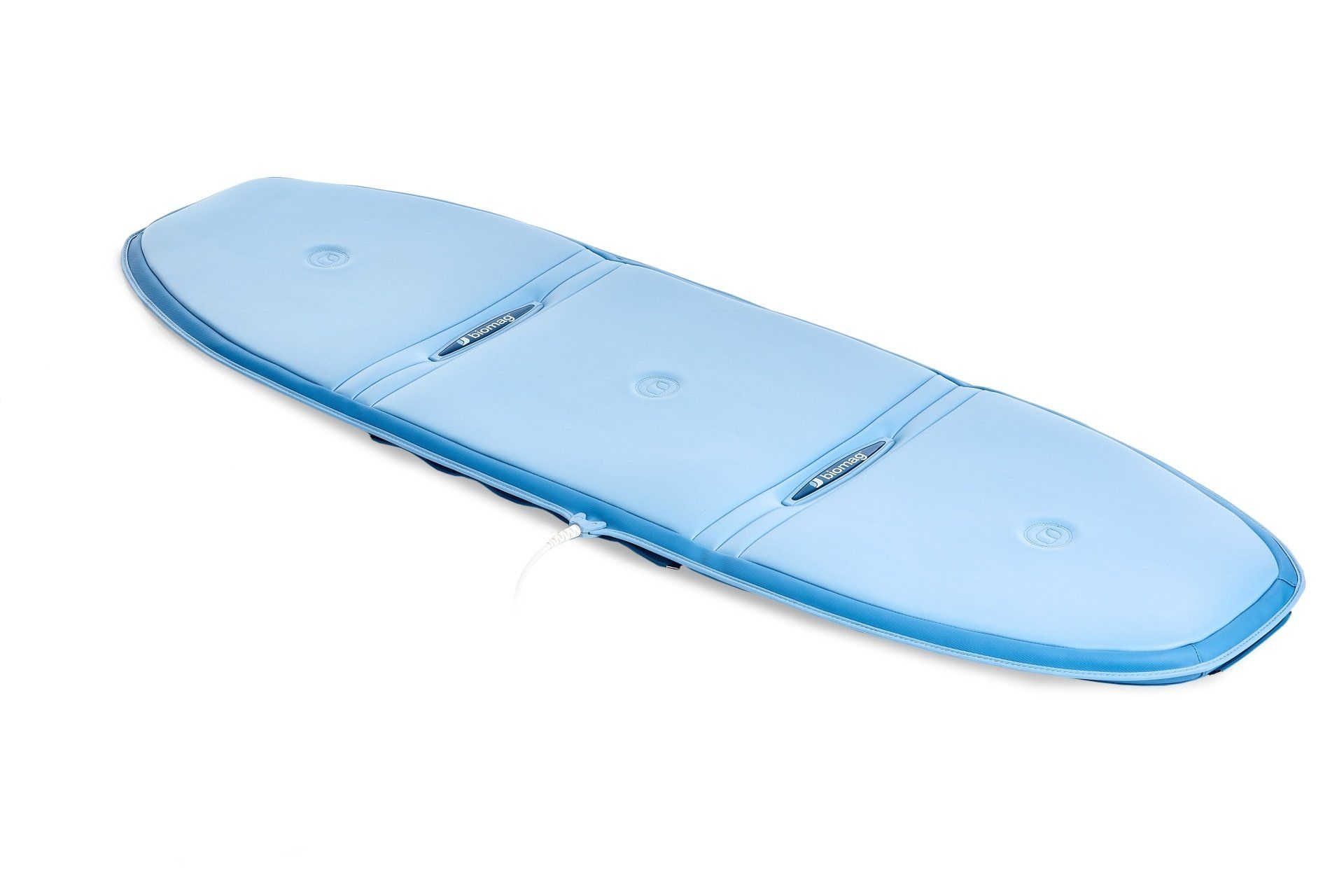

A12PM
3-piece applicator with 3D impulses with the possibility of closed connection or fixation
Conector 3xjack
Dimensions: width 450mm, length 1,400mm, height 40mm, weight 2.60kg
A17P
submission closed
AL60-3D
3-piece intensive applicator with 3D impulses with the possibility of closing and fixing
Conector: 3xjack
Dimensions: width 220mm, length 600mm, height 34mm
Weight. 1kg
AL80
3-piece applicator with fixing option
Connection: 1xjack
Dimensions: width 380 mm, length 800 mm, height 34 mm, weight 1.55 kg
A11P
Presentation without pads

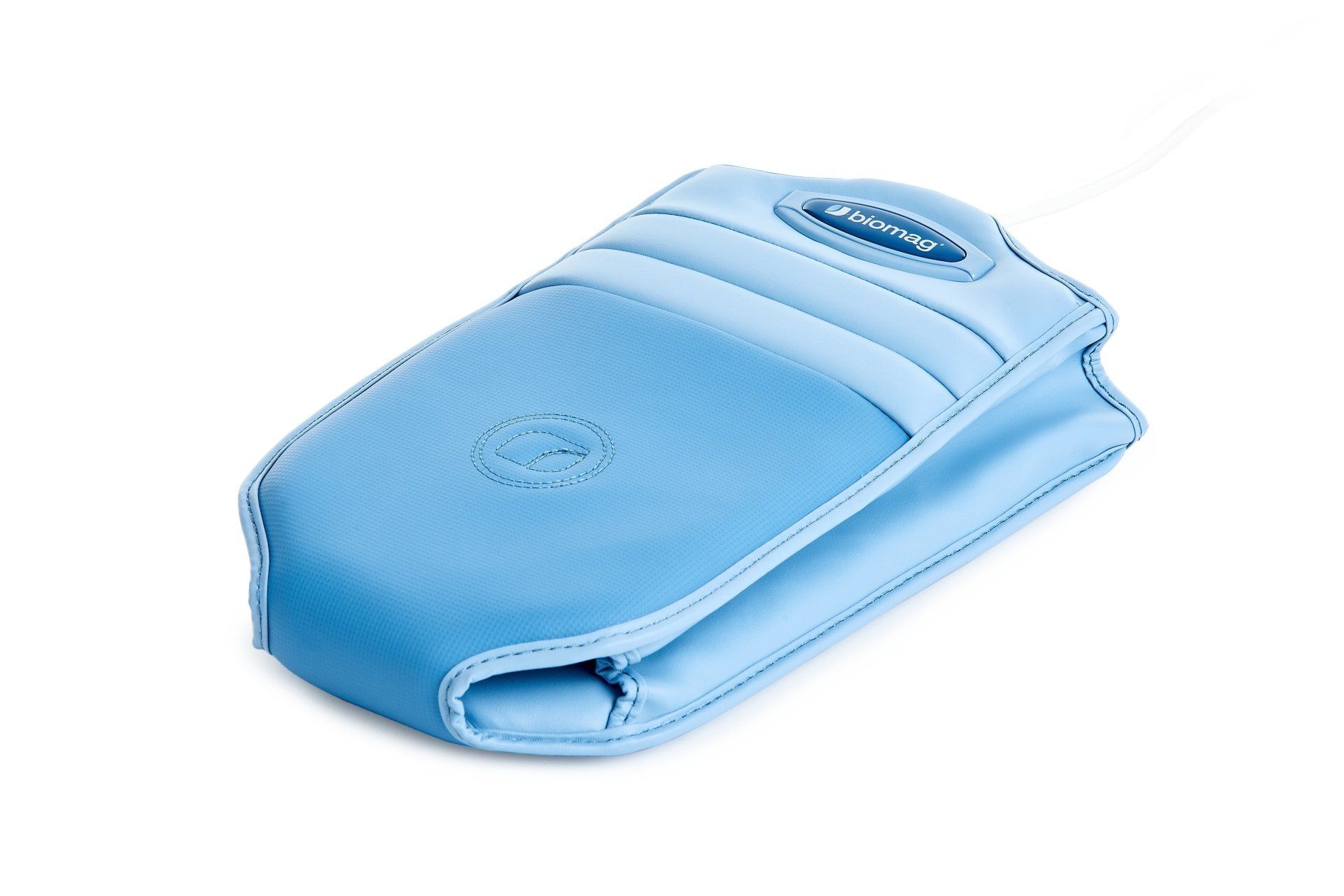

A14P
Local applicator designed for the hand
Conector 1xjack
Dimensions: width 180mm, length 330mm, height 40mm
AL42
One-piece applicator with fixation possibility
Conector 1xjack
Dimensions: width 420mm, length 280mm, height 43mm
Peso: 0,82kg

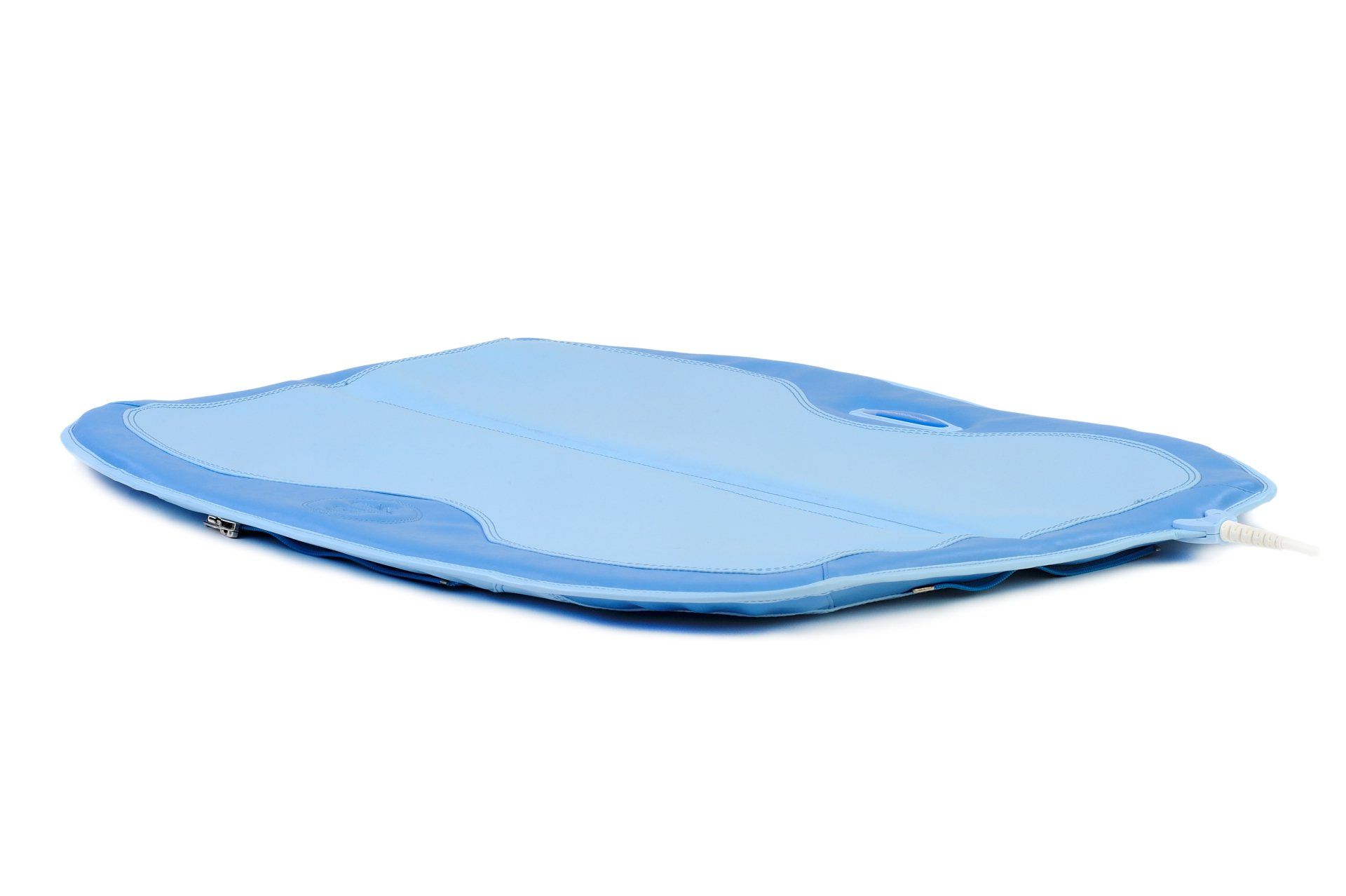

AL64
2-part applicator with fixing option
conector: 1xjack
Dimensions: width 640mm, length 580mm, height 15mm
Peso: 1,15kg
AL95-2C
Two-part applicator with alternating part connection.
Dimensions: width 460 mm, length 950 mm, height 34 mm, weight 1.8 kg
A11P
submission closed

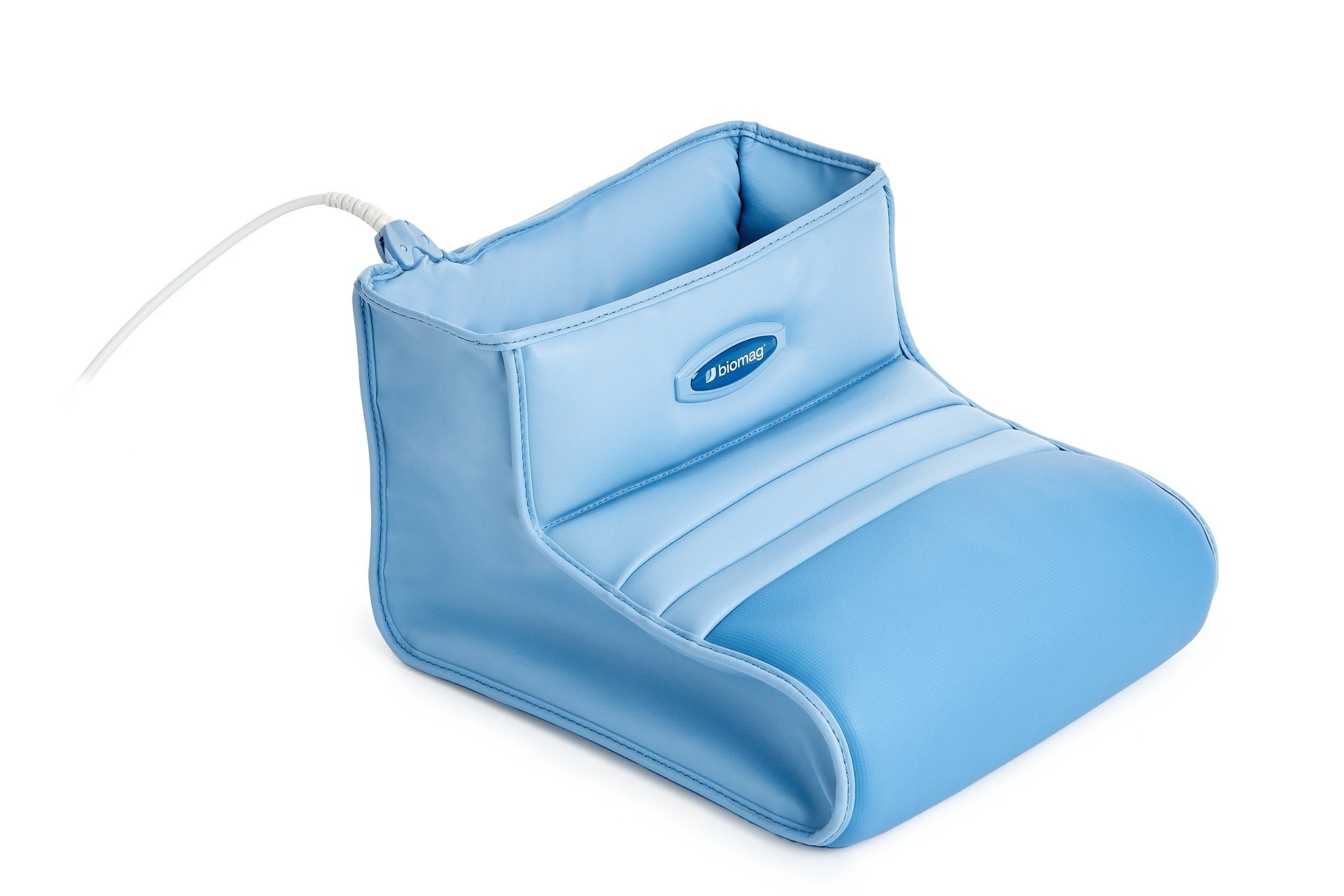

A16P
Applicator designed for lower extremities
I connect 1xjack
Dimensions: width 300mm, length 330mm, height 230mm

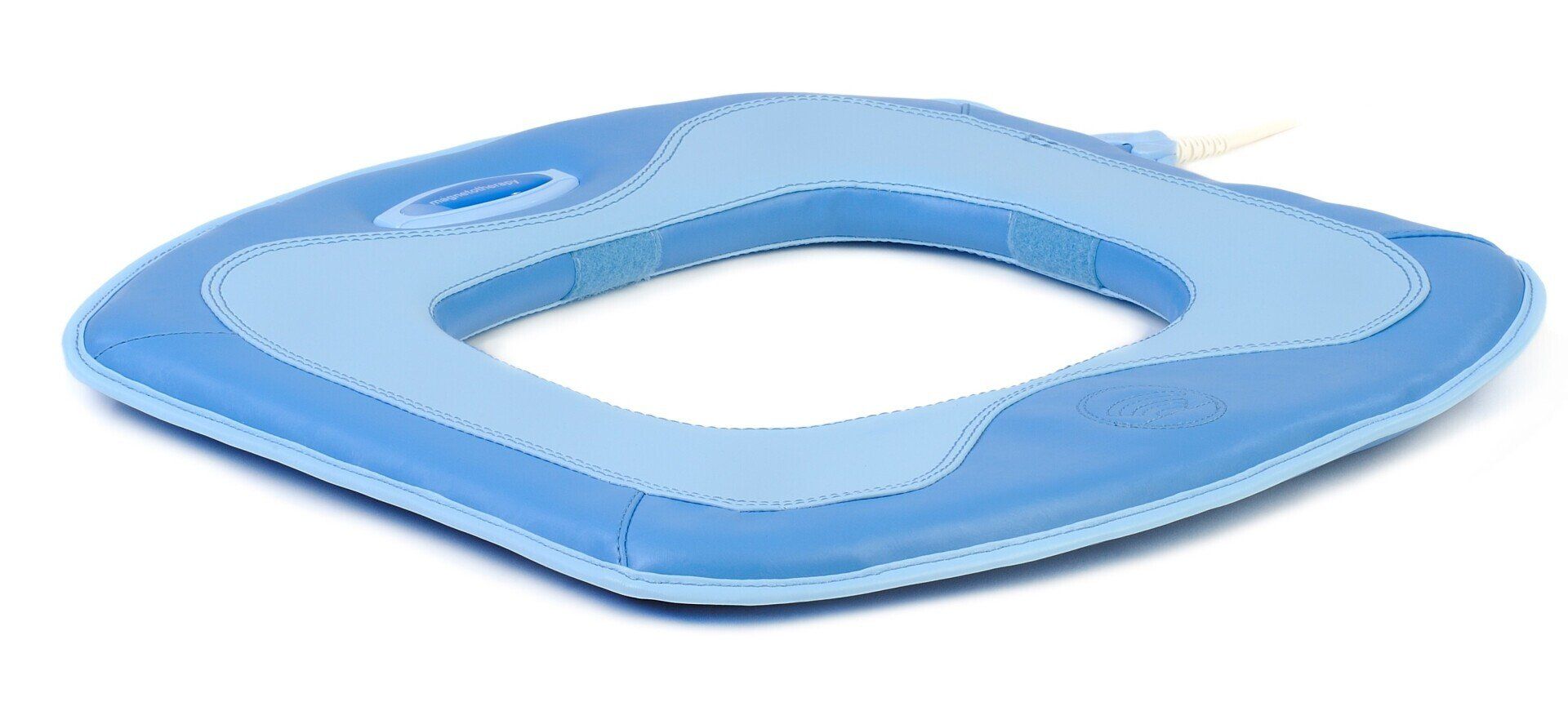

AL43 COMBI
One-piece combined applicator with hole and fixing option
Conector 1xjack
Dimensions . width 430mm, length 430mm, height 28mm
Weight: 0.75kg
AL78
2 piece applicator
Conector: 1xjack
Dimensions: width 430 mm, length 790 mm, height 15 mm, weight 1.15 kg
AL96-2C
Two-part applicator with alternating part connection.
Dimensions: width 460 mm, length 960 mm, height 34 mm, weight 3.58 kg
The Biomag AL115-3D-COMBI Magnetotherapy Applicator has the possibility of folding it in a closed way for rotary applications and can be fixed for applications in different areas of the body: spine, hips, knees, feet, shoulders.
It is a unique applicator on the market with a 3D-ROTATING system.

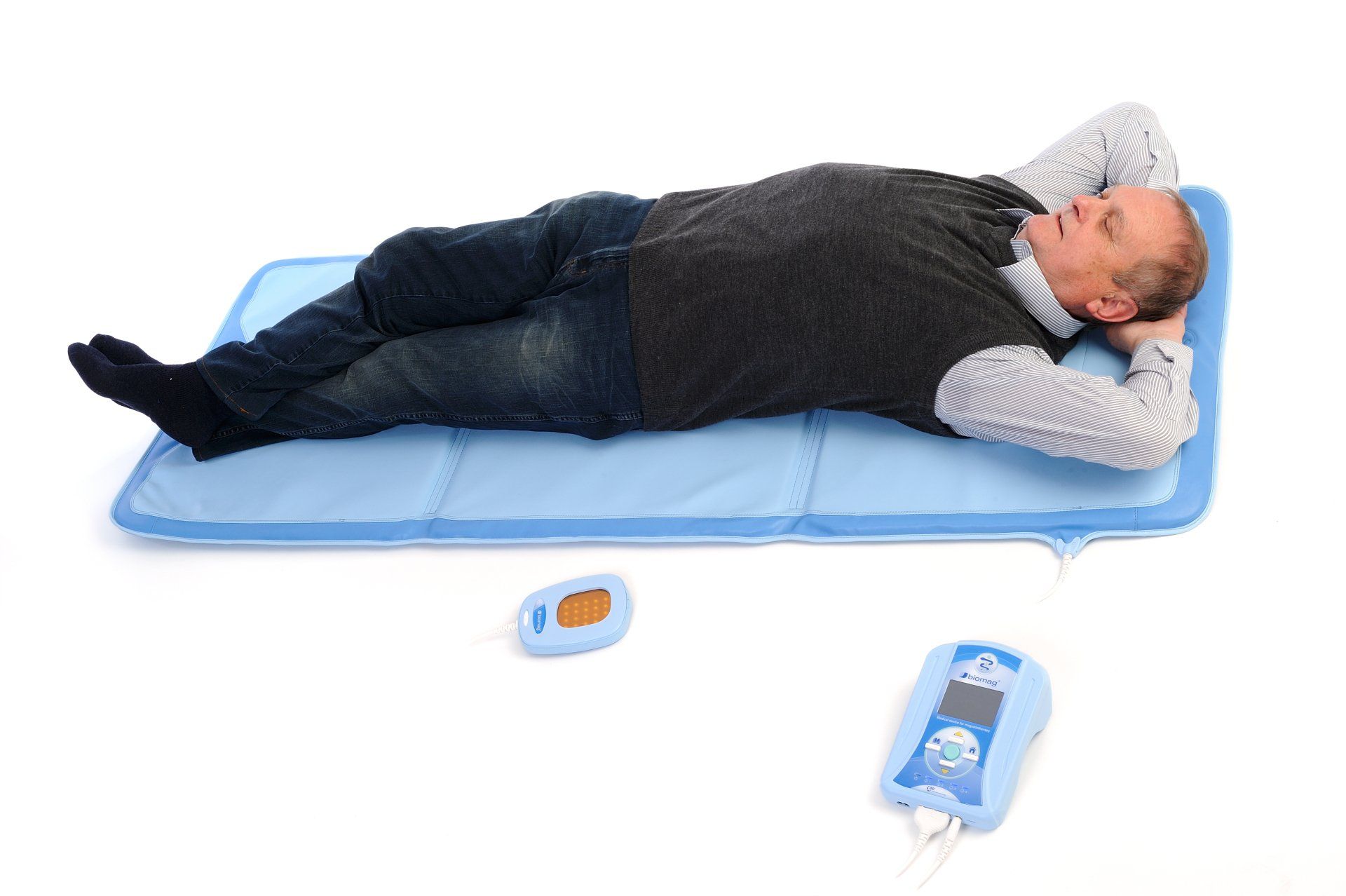

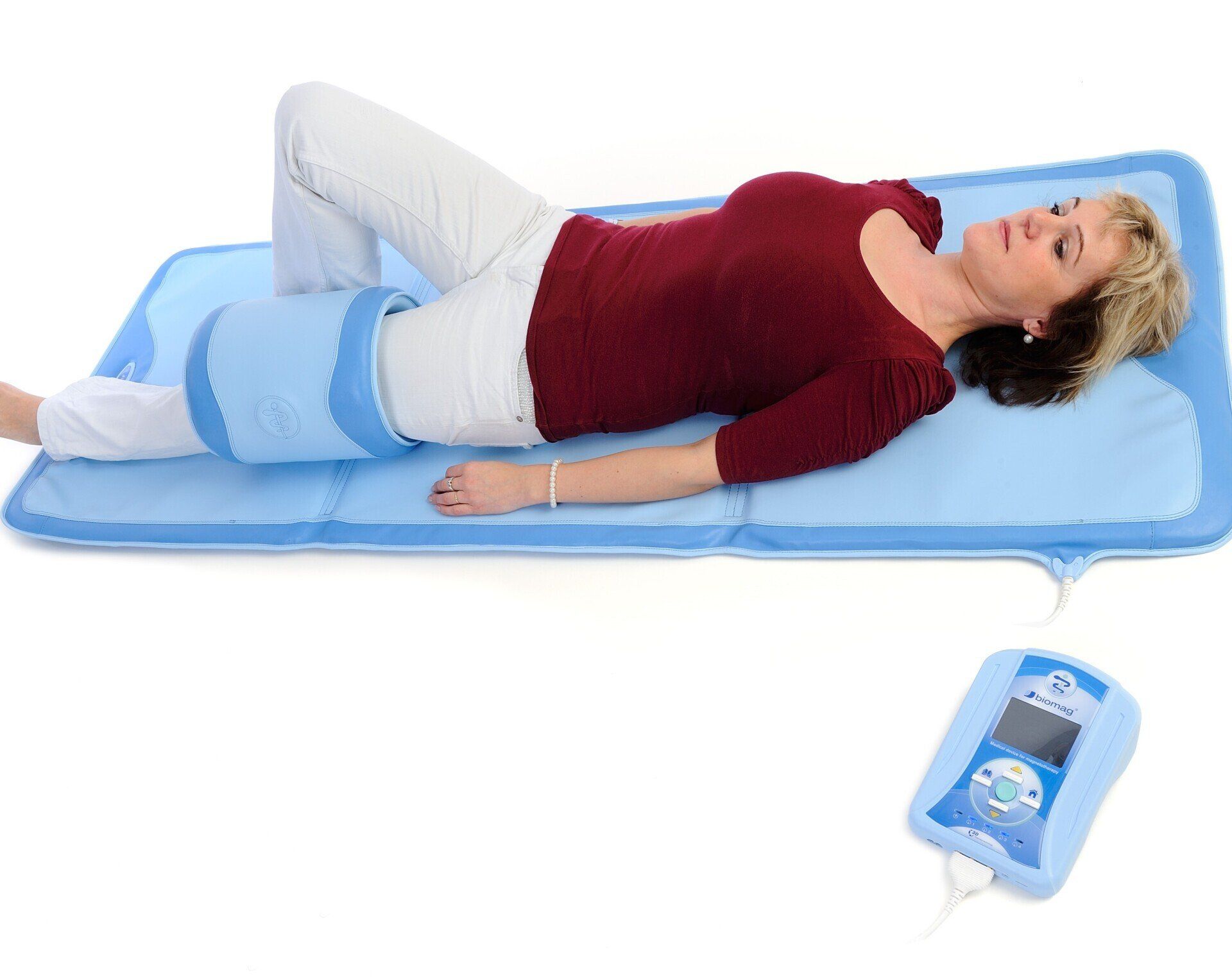

Bed applicators or for use on FLAT SURFACES
The designs of this range of applicators have been based on applications in bed with the possibility of programming repetitive magnetic therapy sessions with the BIOMAG LUMINA device while we sleep. In its design, the standard dimensions of single (one person) and large (2 people) beds have been taken into account. Also for applications on flat surfaces that are not necessarily on a bed.

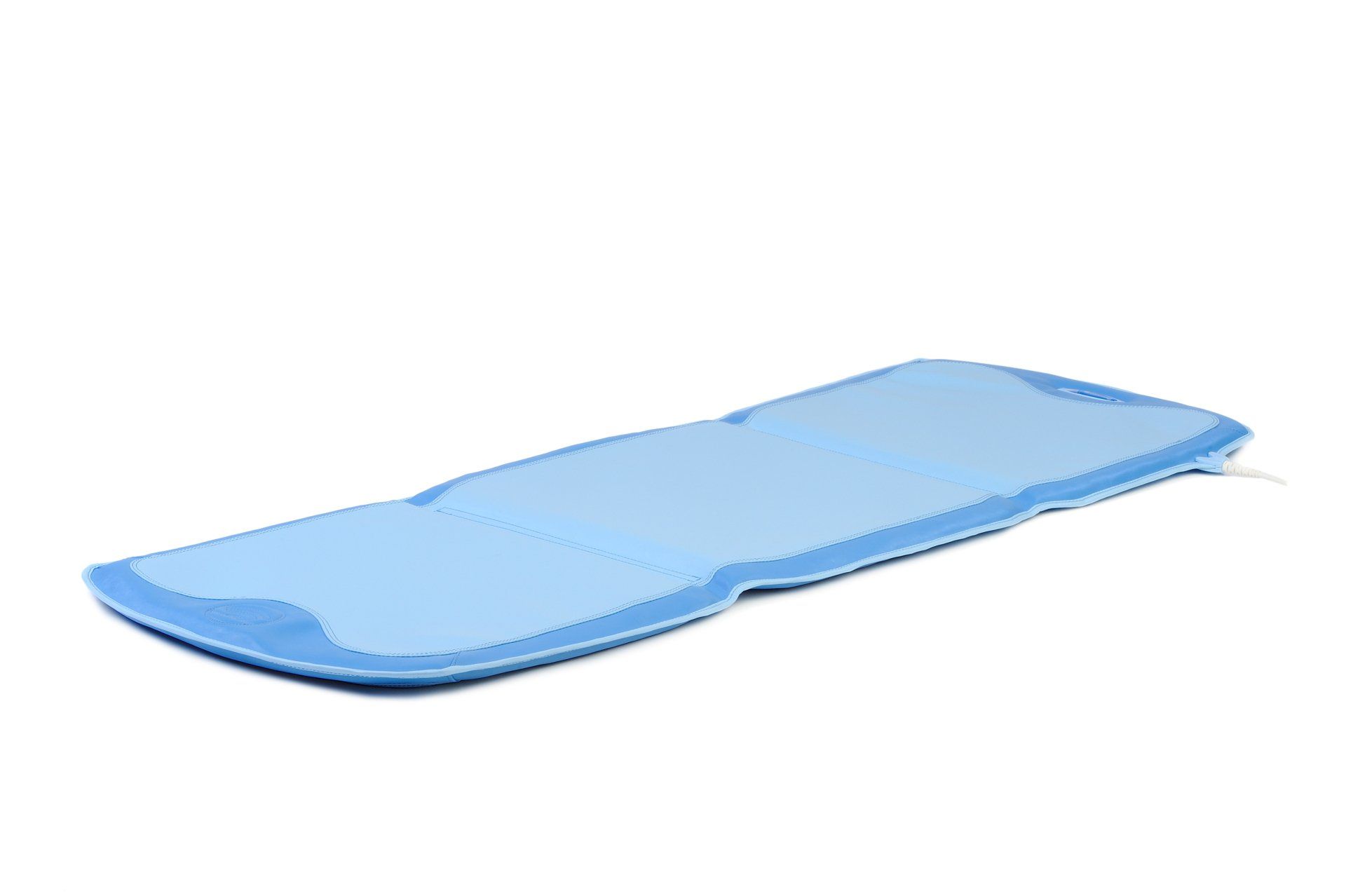

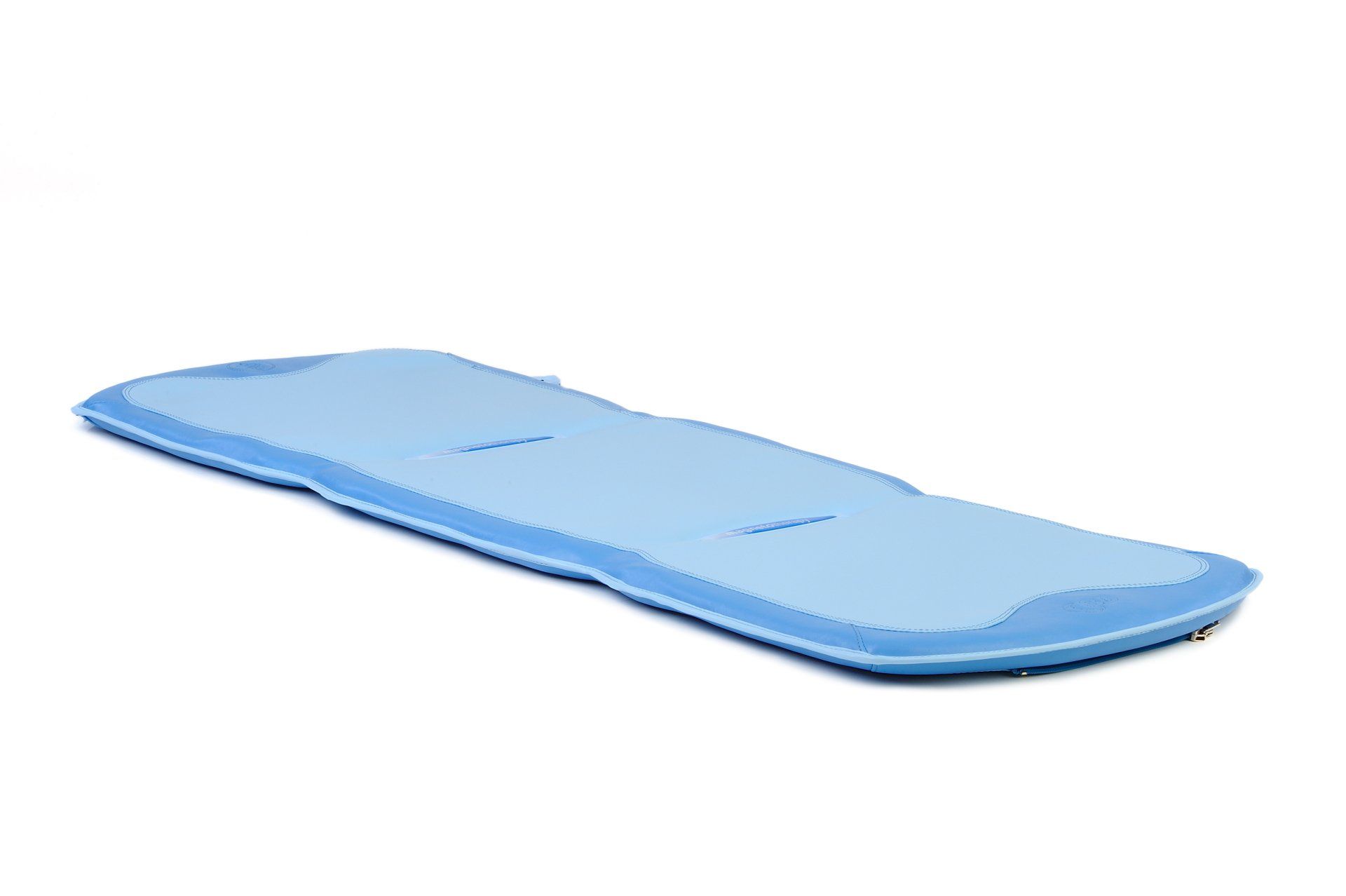

AL135 (Dzeta L)
three piece applicator
Conector 1xjack
Dimensions: width 460 mm, length 1350 mm, height 28 mm, weight 1.86 kg
AL180 CAR
three piece applicator
1xjack connection
Dimensions: width 720 mm, length 1800 mm, height 9 mm, weight 2.4 kg
AL135-3D
Three-piece applicator with 3D impulses with the possibility of joining in closed form or application
Conector 3xjack
Dimensions: width 460 mm, length 1350 mm, height 28 mm, weight 2.5 kg
AL180-3D
Three-piece applicator with 3D impulses and the possibility of joining in closed form and fixation.
Connection: 3xjack
Dimensions: width 720 mm, length 1800 mm, height 25 mm, weight 3.8 kg

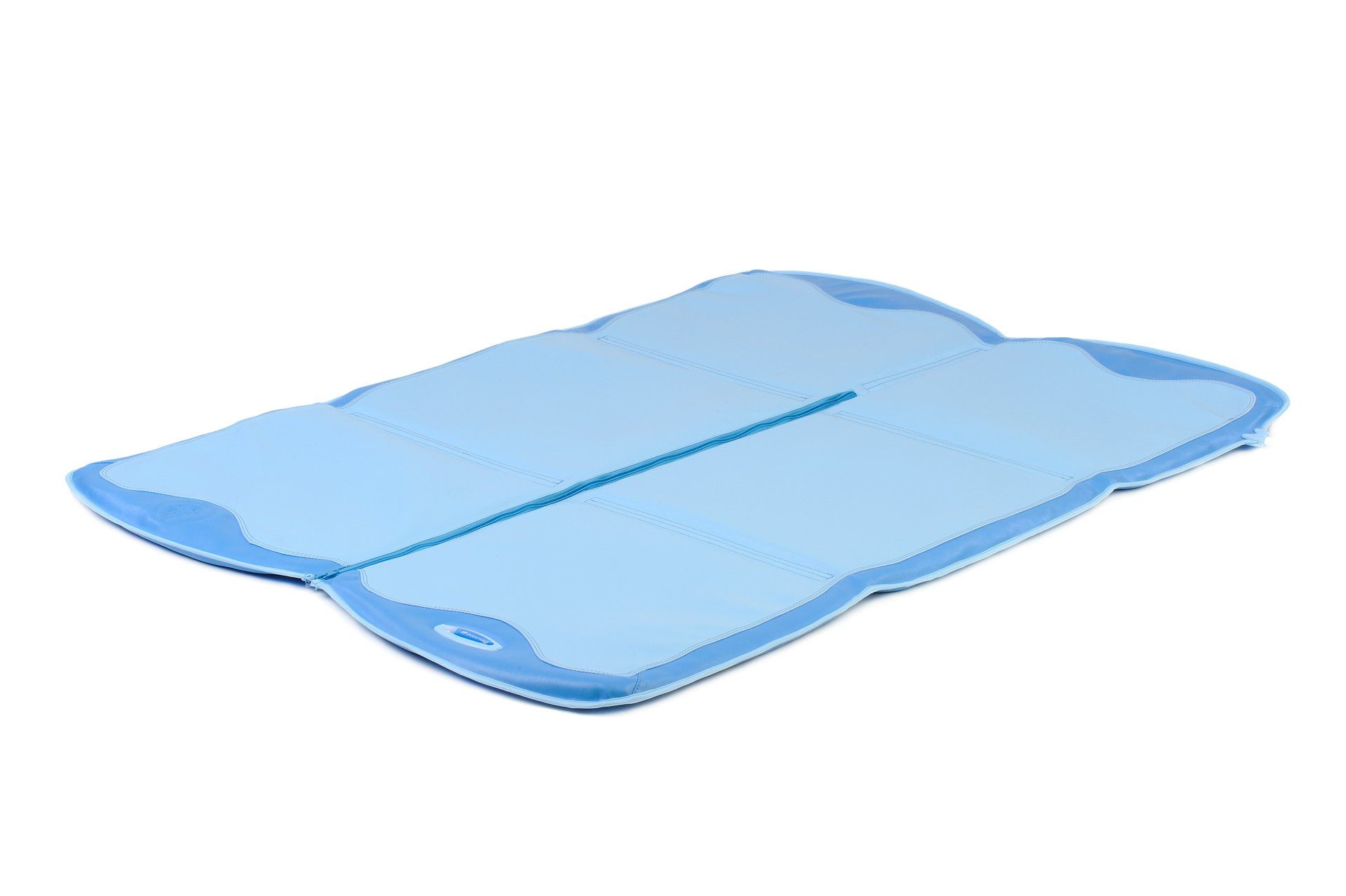

AL135-2C
Six-piece applicator with alternating connection on the left and right, with the possibility of fixing
Conector 2xjack
Dimensions: width 920 mm, length 1350 mm, height 15 mm, weight 3.5 kg
AL180-2C
Six-piece applicator with alternating connection on the left and right.
Connection
Dimensions: width 1450 mm, length 1800 mm, height 15 mm, weight 6.2 kg
AL180
three piece applicator
1xjack connection
Dimensions: width 720 mm, length 1800 mm, height 15 mm, weight 3.2 kg
AL180-2C CAR
Six-piece accessory with alternating left and right side connection.
Dimensions: width 1350 mm, length 1800 mm, height 9 mm, weight 4.3 kg

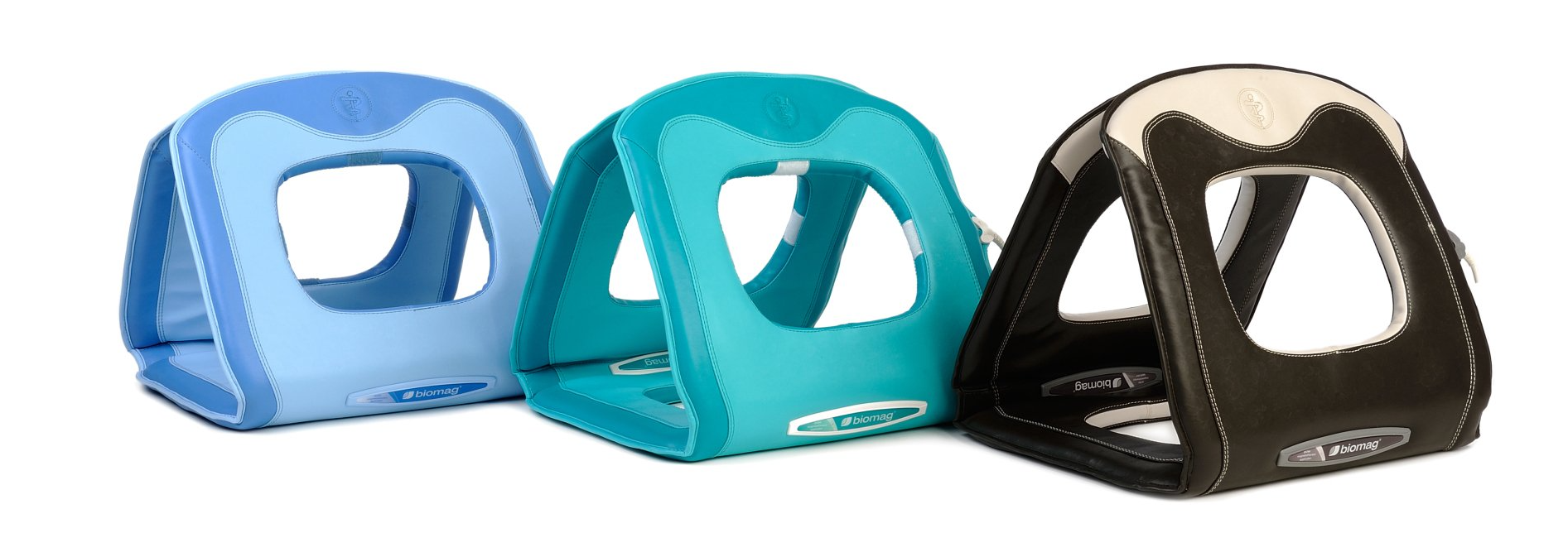

Color range
Contact our therapists for advice on the most suitable range of Biomag magnetotherapy applicators based on your needs. Whether for professional or private use.
